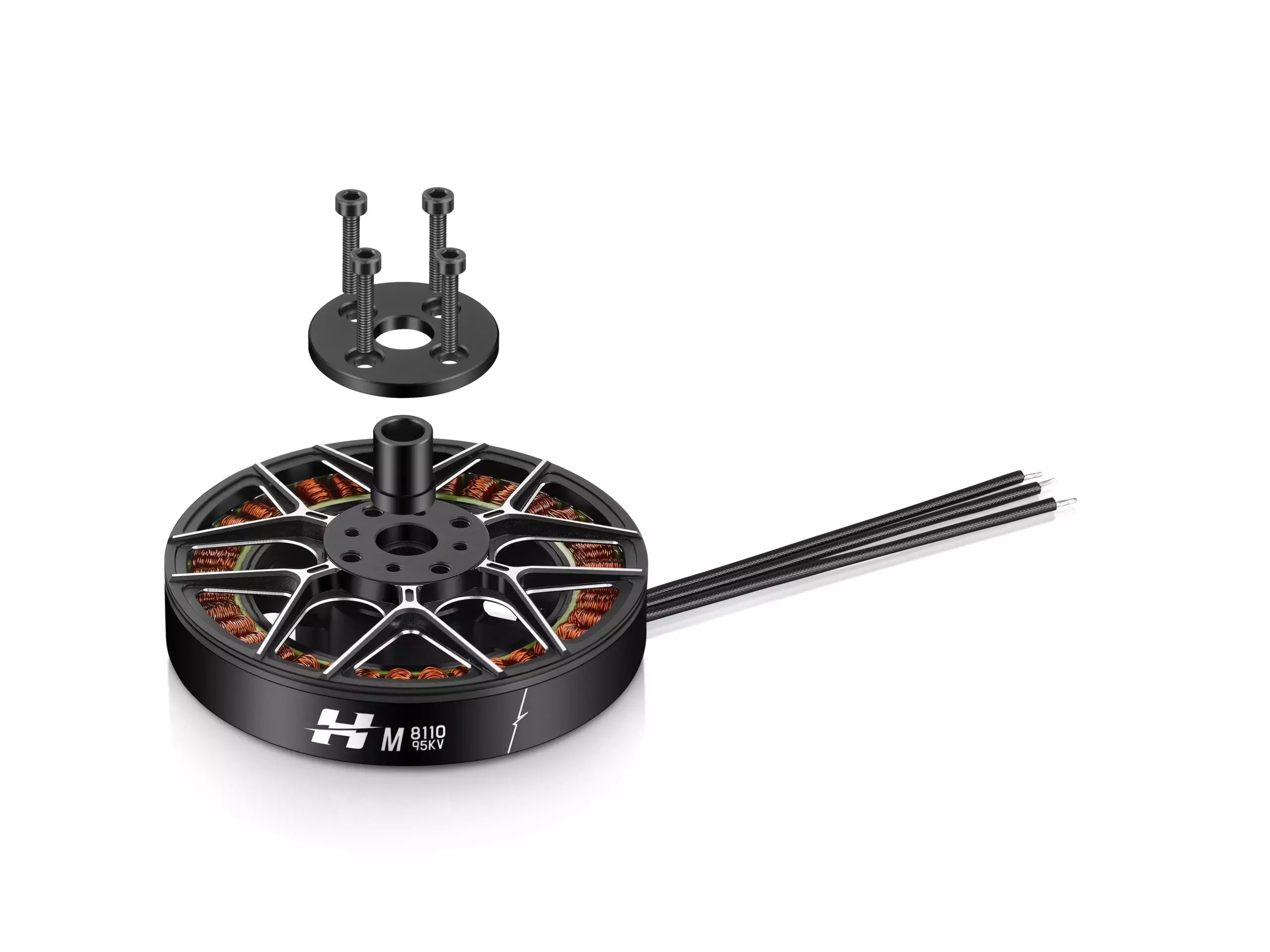

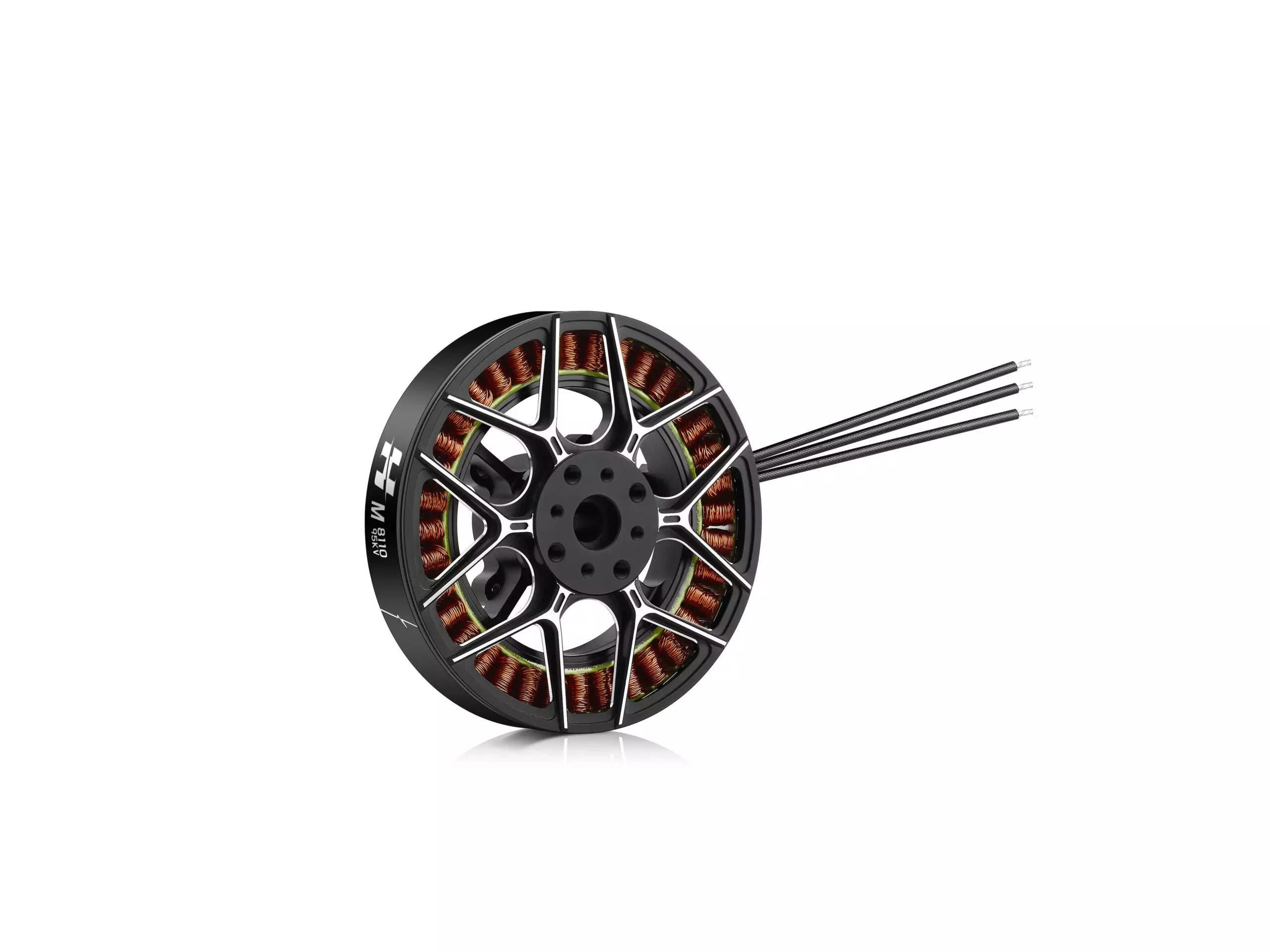

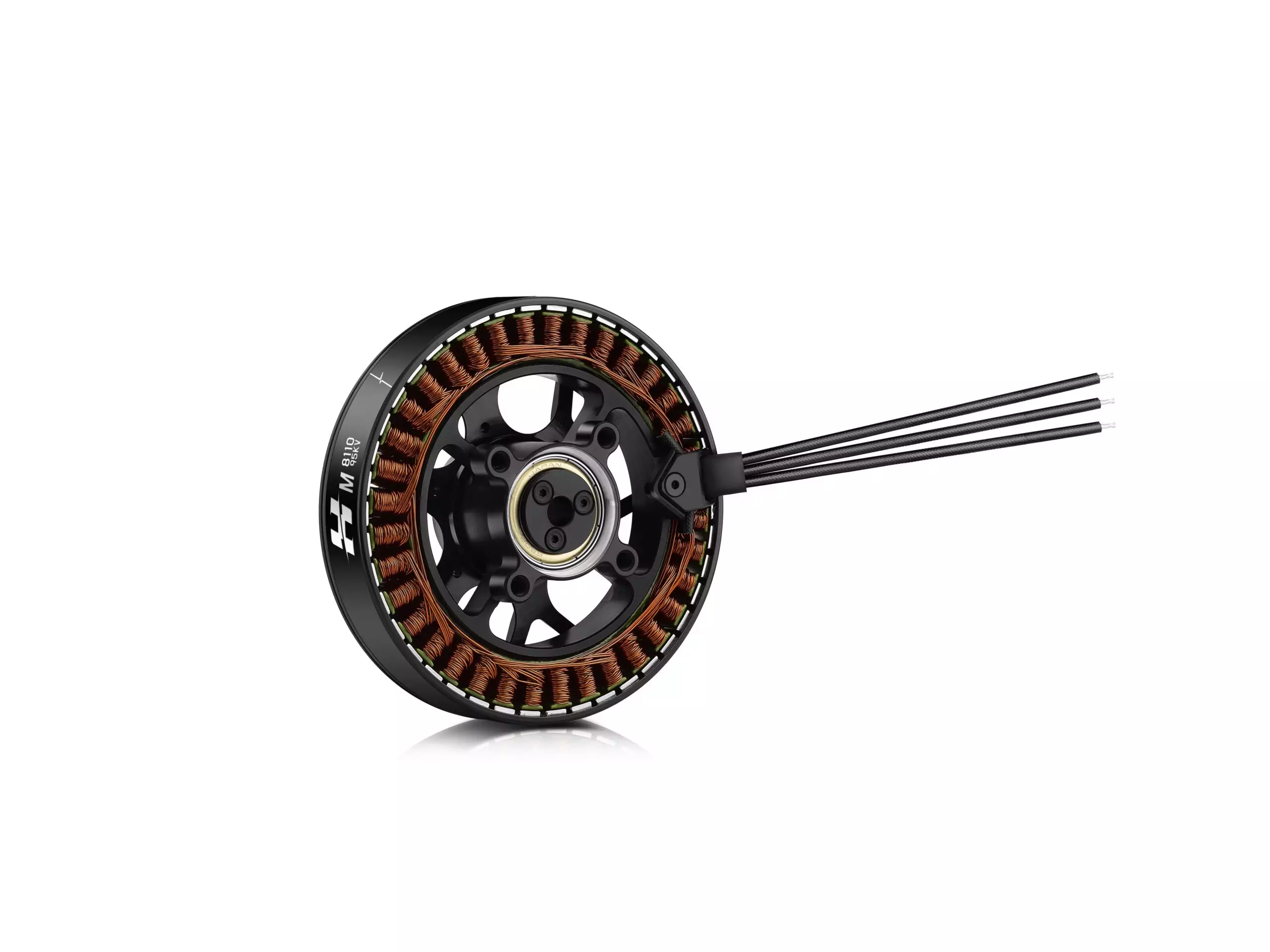

Hobbywing M8110 UL Industrial Drone Motor (95KV)

The Hobbywing M8110 UL is an ultra-light endurance motor built for industrial multirotor UAVs. With its hollow rotor design, advanced magnetic circuit, and premium materials, it ensures long flight times, reliable stability, and exceptional efficiency, making it ideal for mapping, surveying, and inspection missions.

Key Features

High Efficiency & Endurance

• Recommended thrust per rotor: 3.5 kg+

• Efficiency: 11–12 g/W+

• Supports quadcopters up to 12 kg MTOW

• Endurance up to 120 minutes with 12S 40Ah battery

Advanced Magnetic Circuit Design

• Optimized anti-EMF harmonics produce cleaner sine waves

• Improves ESC matching and throttle response

• Enhances overall stability and efficiency

Lightweight & Durable Design

• Hollow rotor design for reduced weight and distinctive appearance

• Integrated bracket and shaft ensure precise coaxiality

• Tail spindle secured with three M2.5×8 washer-locking screws for reliability

Premium Materials

• High-quality aviation aluminum (7075) with CNC machining

• Low-loss silicon steel sheets reduce energy loss

• Waterproof, low-friction bearings extend service life

Industrial-Grade Reliability

• Built with high-grade raw materials under strict quality standards

• Anti-rust and corrosion-resistant treatments ensure long-term durability

• NSS-certified for safety and performance

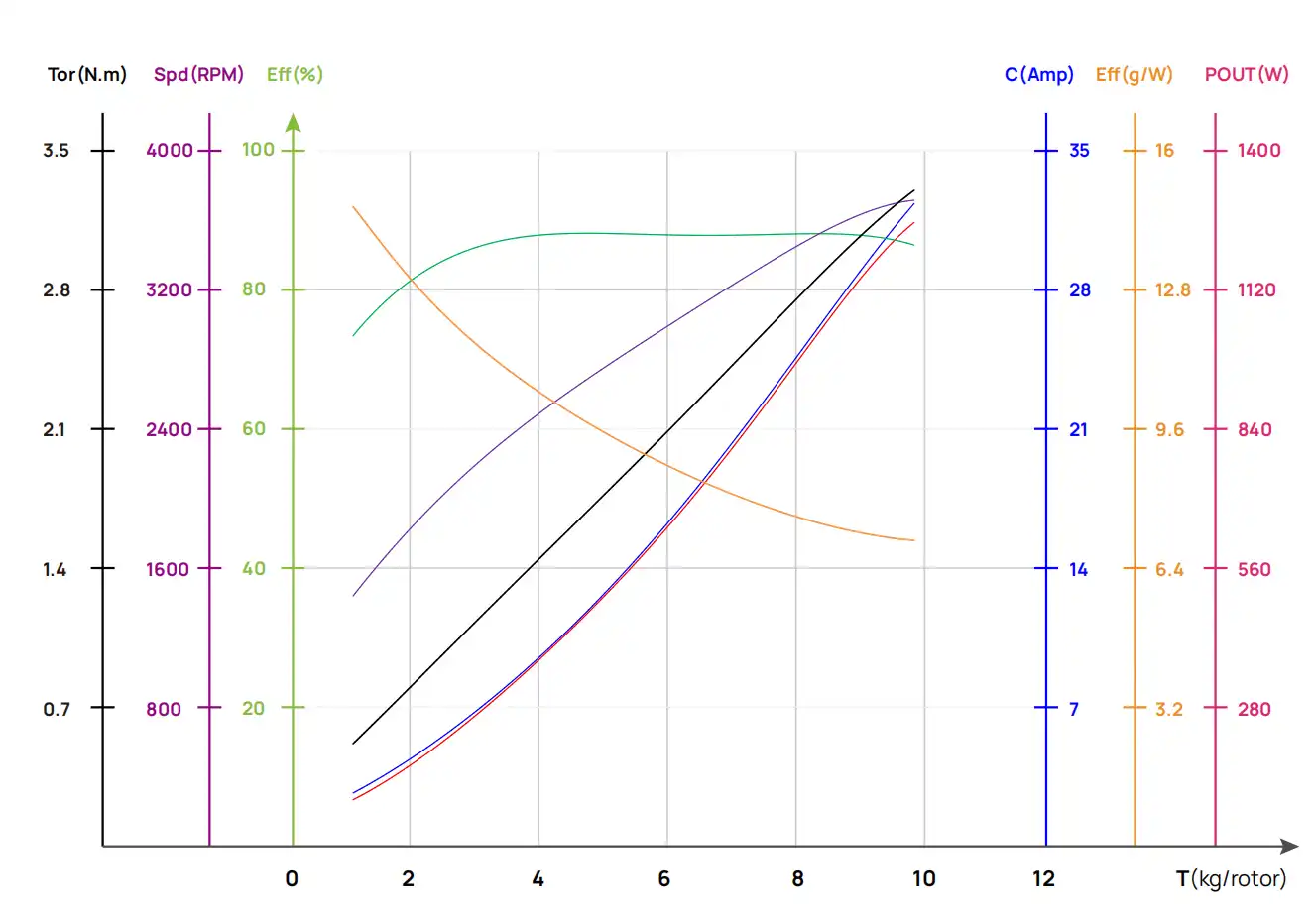

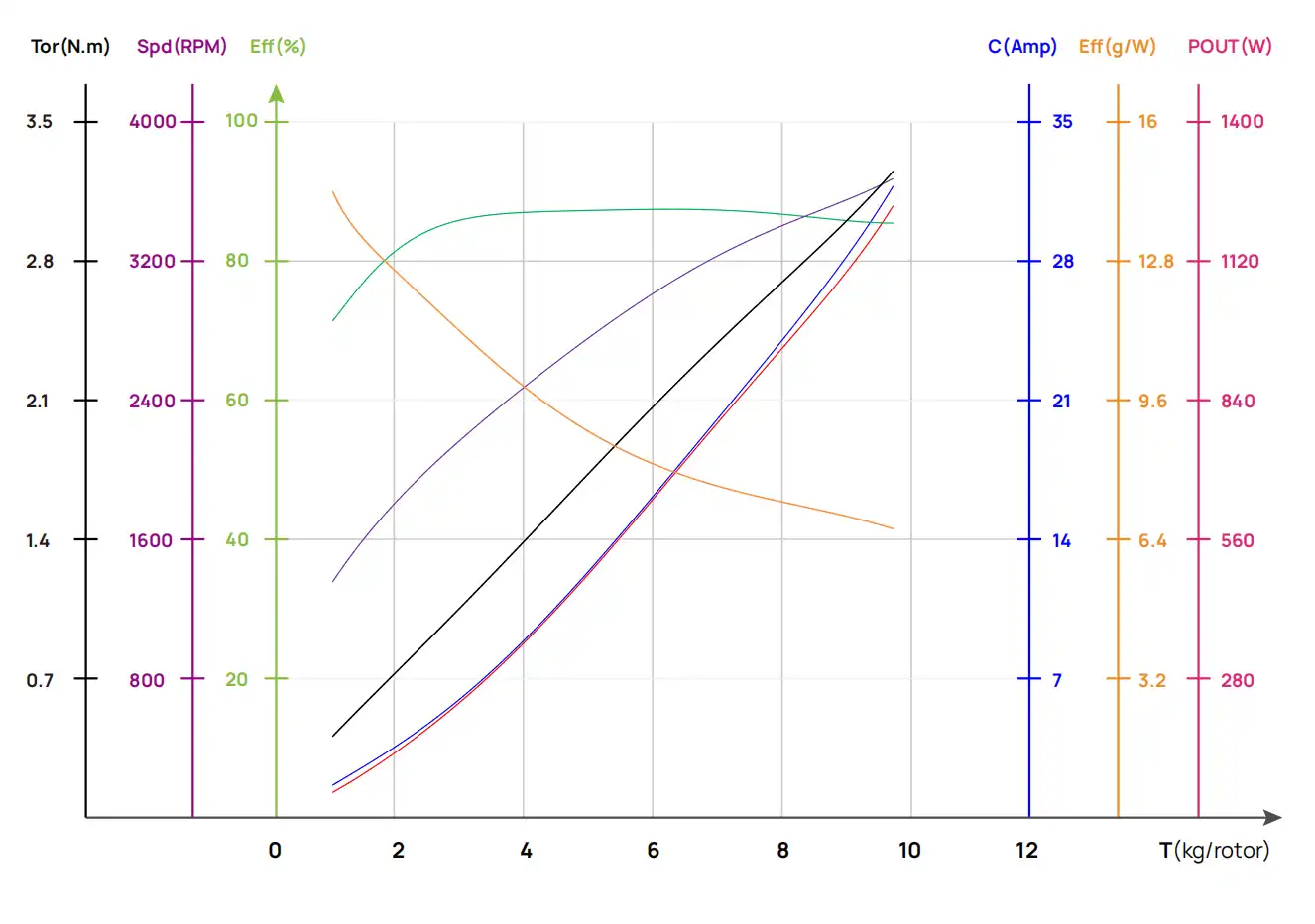

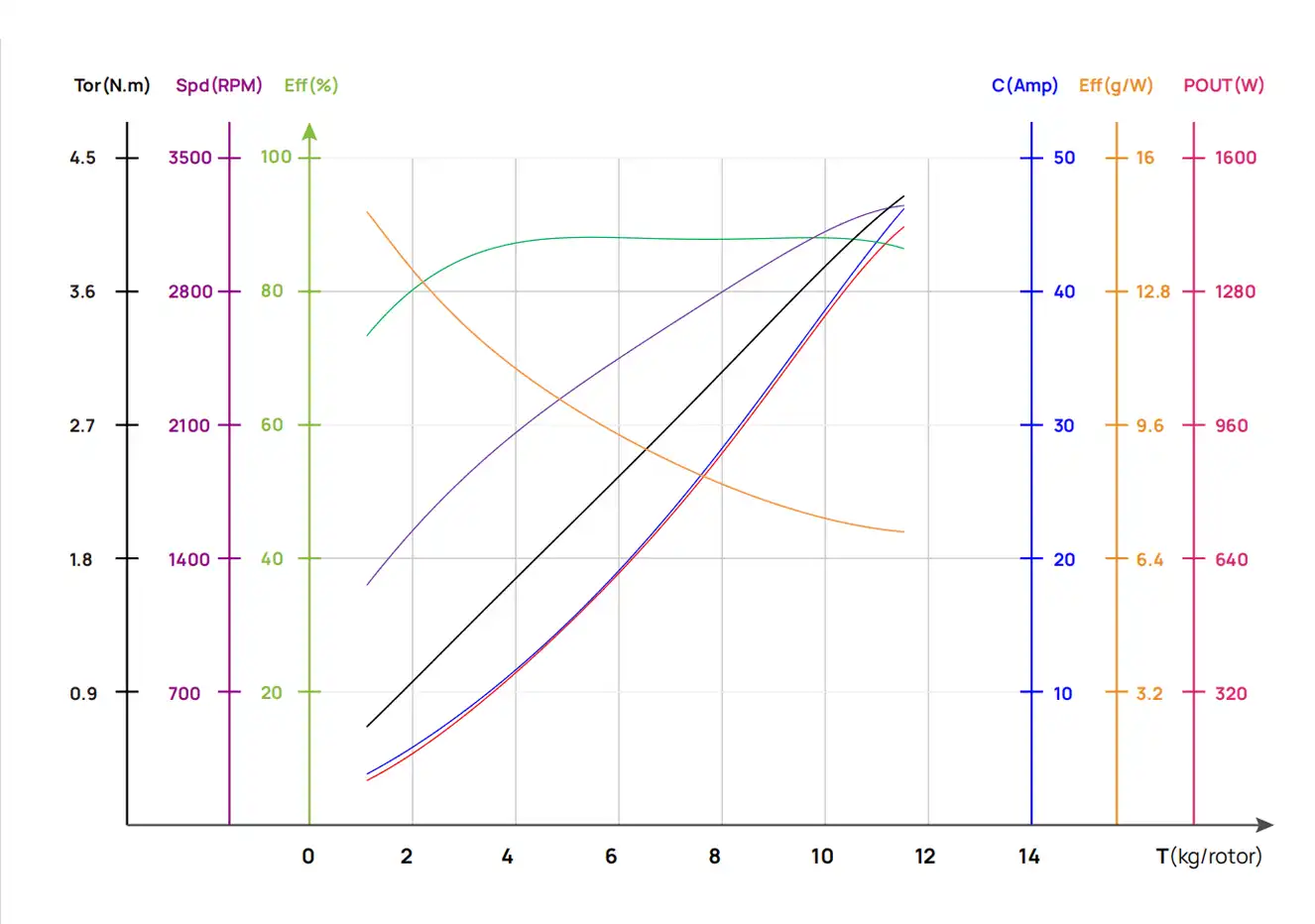

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
