Hobbywing M4006 HP 330KV Industrial Drone Motor

The Hobbywing M4006 HP is a high-efficiency industrial brushless motor designed for multirotor UAVs. With its advanced magnetic circuit, enhanced cooling, and premium materials, it ensures reliable endurance, stable performance, and long service life under demanding conditions.

Key Features

High Efficiency & Endurance

• Optimized for thrust output of 0.6–1.0 kg per rotor

• Suitable for quadcopters with a total takeoff weight of 2.4–4.0 kg

• Designed for long endurance and stable flight

Advanced Cooling & Protection

• Rotor bracket with centrifugal fan for effective heat dissipation

• Knurled shaft for secure fit and improved tolerance

• Enhanced protection against dust, moisture, and wear

Durability & Reliability

• Waterproof bearings with low friction torque for extended lifespan

• High-toughness carbide main shaft

• 0.2 mm low-loss silicon steel iron core for reduced energy loss

• Seamless steel tube rotor casing with nickel electrophoresis for corrosion resistance

Attention to Detail

• Locking screw + snap ring structure secures the spindle

• High-quality anti-rust screws for long-term durability

• Refined design to minimize airflow interference near propeller roots

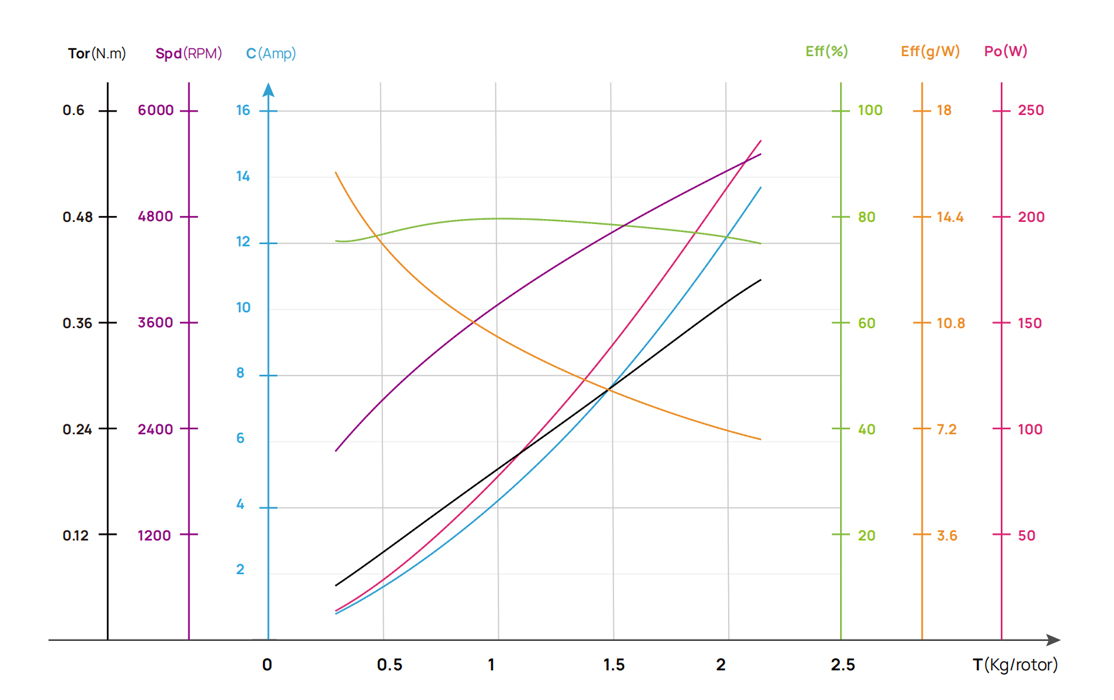

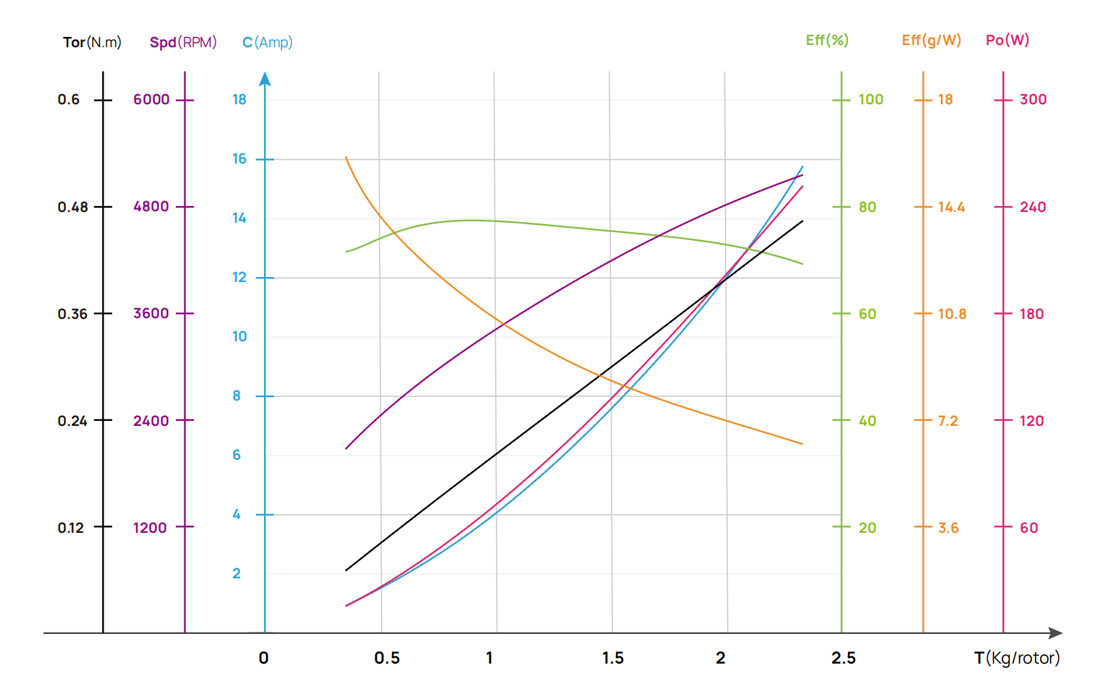

Load Parameters:
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
