Hobbywing M13842 HP Industrial Heavy-Lift Drone Motor (38KV)

The Hobbywing M13842 HP is a heavy-duty industrial motor engineered for ultra-heavy lift UAVs. With massive thrust capacity, robust structural design, and premium-grade materials, it ensures reliable performance for logistics, rescue, agricultural spraying, and other demanding missions.

Key Features

Extreme Heavy-Lift Performance

• Maximum thrust: up to 108 kg (38KV version with 58×24″ prop at 92V, full throttle, lab tested)

• Recommended thrust per rotor: 35–40 kg

• Supports quadcopters with MTOW between 140–160 kg

Robust & Durable Construction

• Structural design tested for 1000+ hours of operation

• High-strength 7075 aviation-grade aluminum alloy body

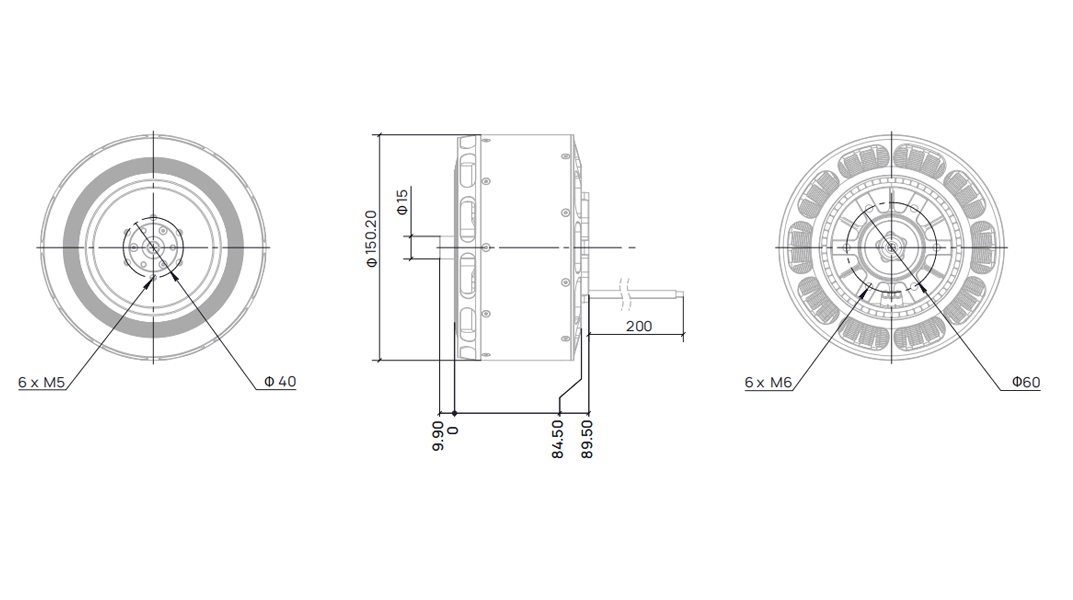

• Large-diameter stator (Φ137.6 mm) for stable torque output

Premium Materials

• High-performance iron core from low-loss silicon steel sheets

• Anti-rust and anti-corrosion treatment applied to silicon steel components

• High-grade sintered NdFeB magnets, capable of withstanding up to 180°C

• Durable alloy shaft with precision high-quality bearings

Advanced Cooling System

• Rotor bracket with centrifugal air-cooling system

• Ensures efficient heat dissipation and reliable operation in harsh conditions

• Rated for ambient temperatures up to 50°C (reduced load recommended for prolonged use in high-heat environments)

Safety & Certification

• Certified by NSS48 for industrial reliability

• 1000V AC high-voltage insulation test passed

• Built for long-term, safe operation in critical missions

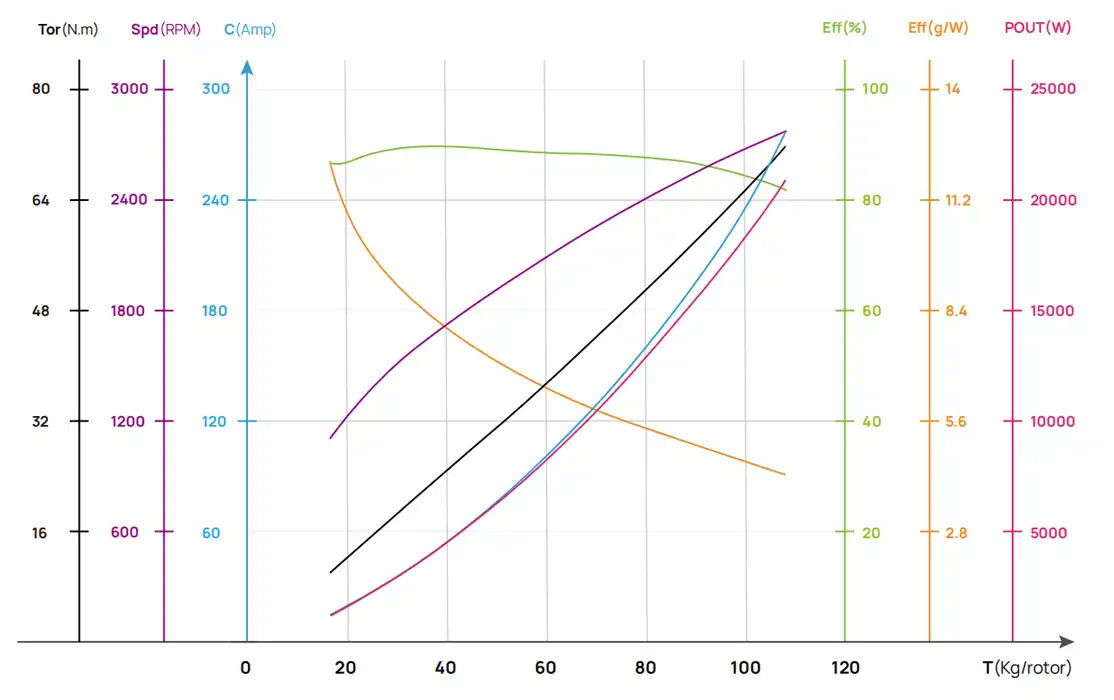

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
