SKU: 30502012802

XRotor H80A 14S BLDC IPC

Brushless ESC with BLDC drive, specially designed for UAV drones, portable size and light weight. Supports standard and HV Lipo Battery packs. BLDC performs better compatibility and stability in driving. IPC (Intelligent Propeller Control) function, allowing flexibly stop propellers at a preset or fixed angle. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.

98,73

51 en stock

Payment methods

Technical specifications

Weight: 87g (without cable)
Battery: 12-14S
IPC function: Yes

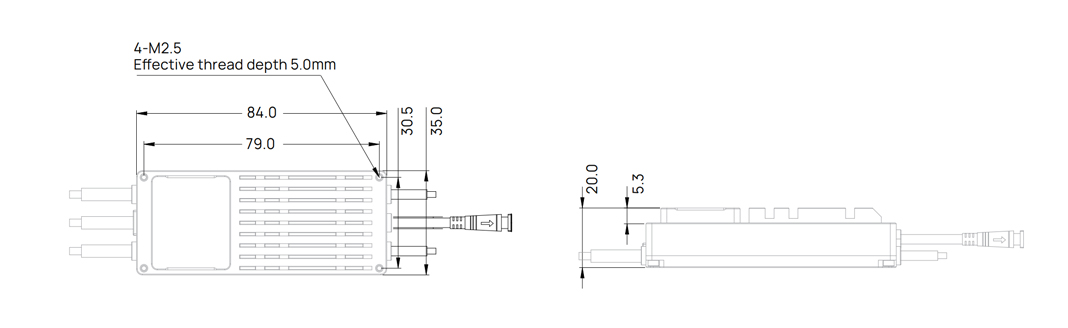

Size: 78.5*32.5*18.4mm
Fail storage: LOG+FAULT
THR pulse: 1100-1940μs
Communication Protocol: CAN+PWM
Max current: 100A (3s)
Cont current: 40A
