SKU: 30502012801

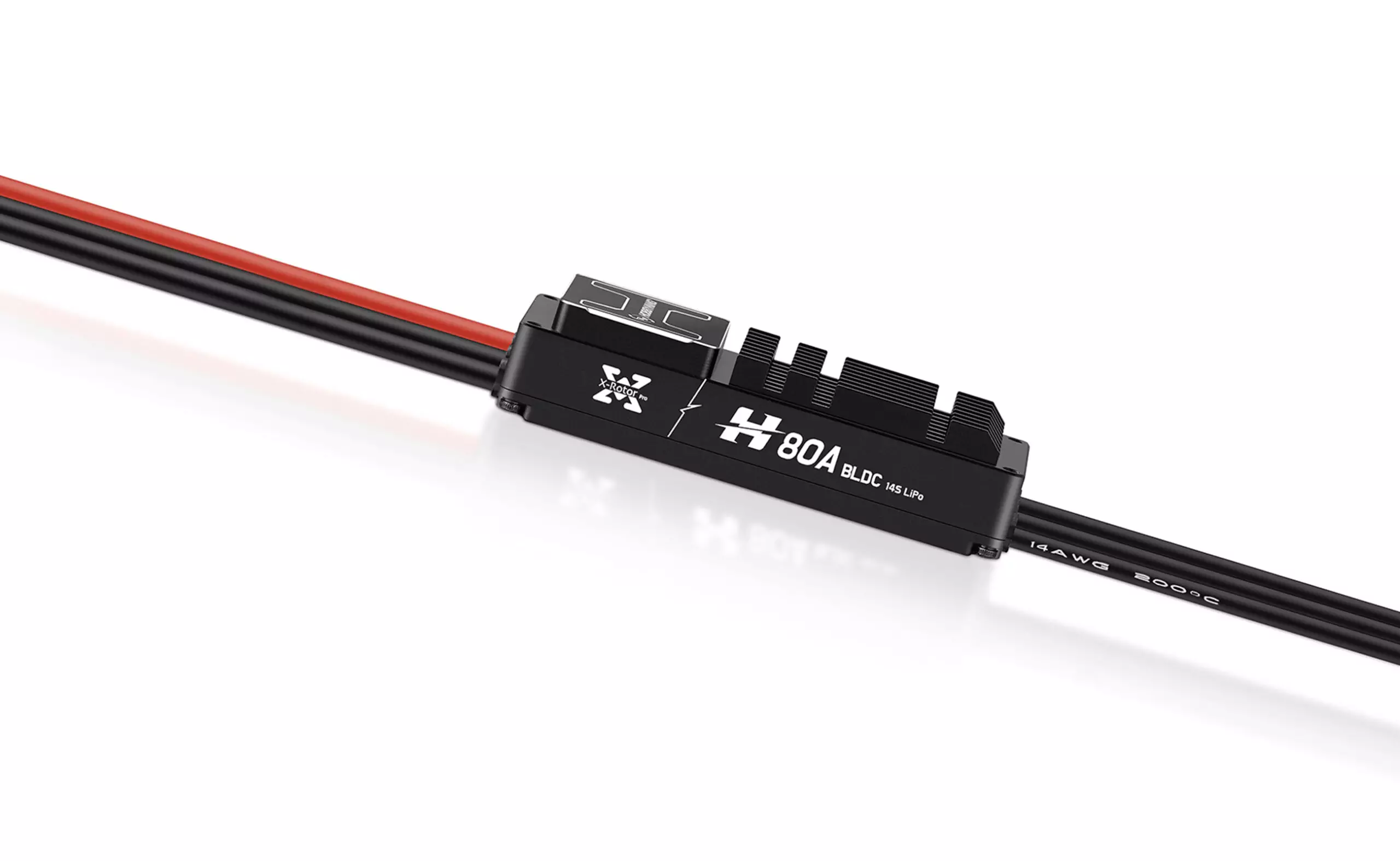

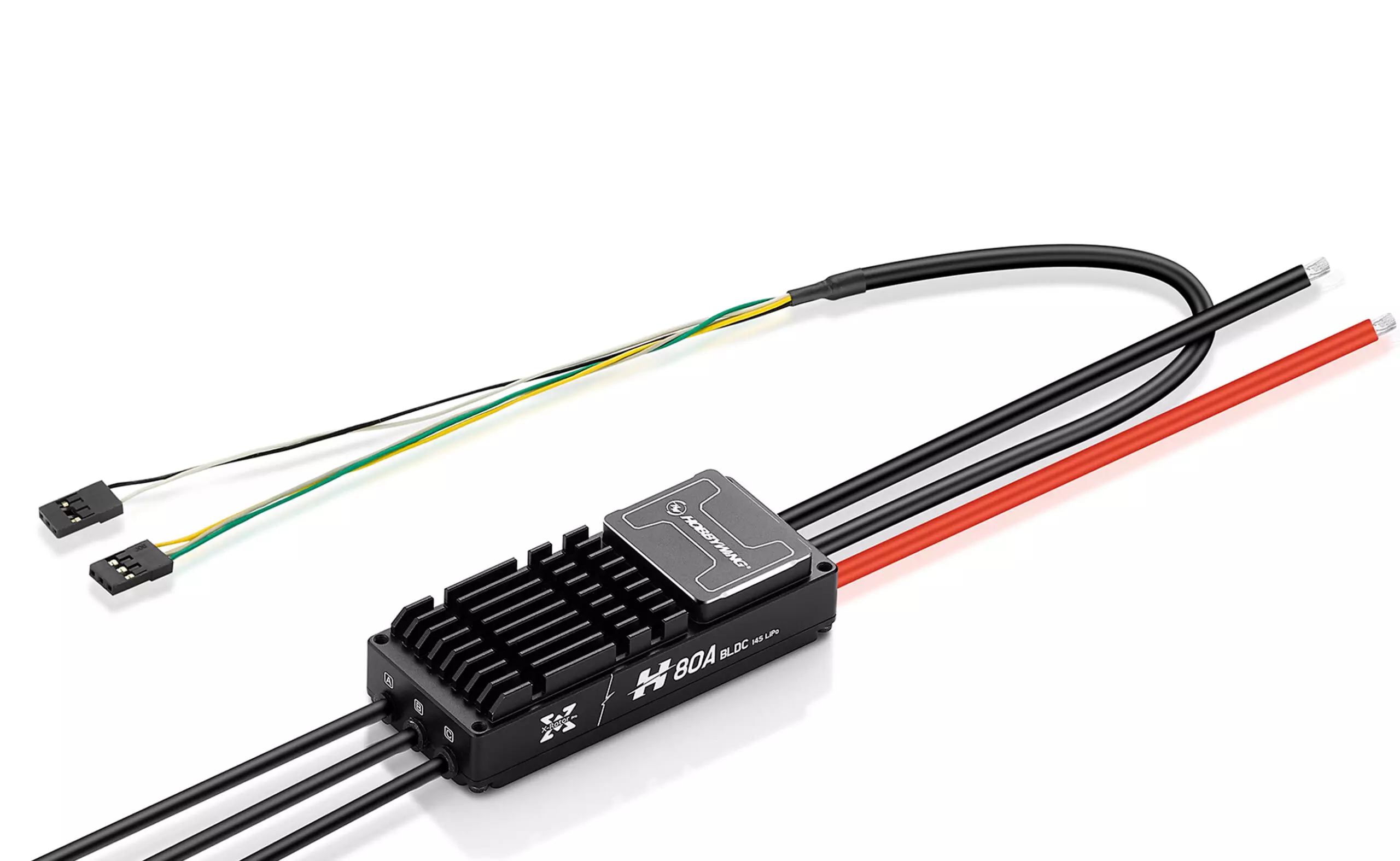

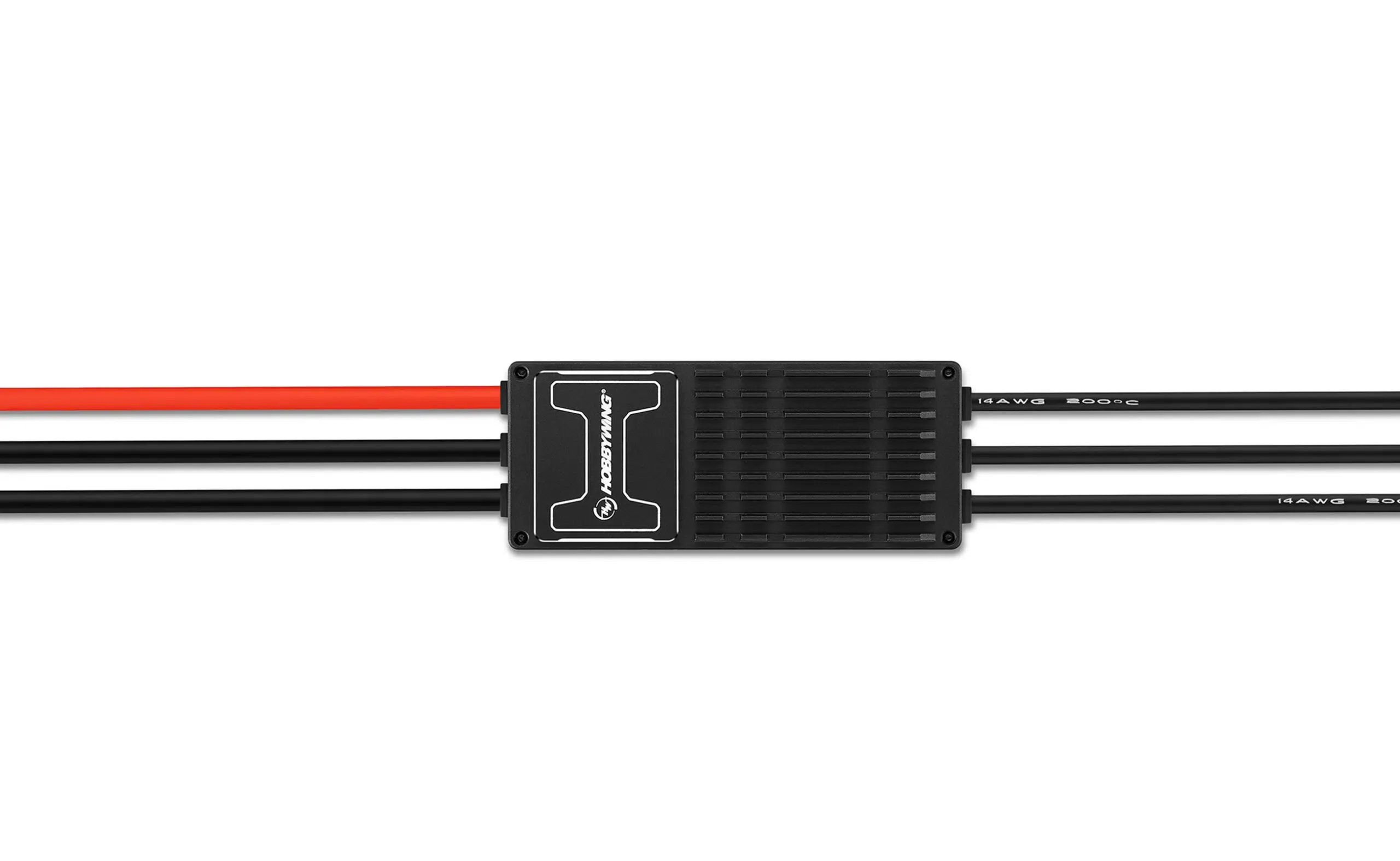

XRotor H80A 14S BLDC

Brushless ESC with BLDC drive, specially designed for UAV drones, portable size and light weight. Supports standard and HV Lipo Battery packs. BLDC performs better compatibility and stability in driving. IPC (Intelligent Propeller Control) version is optional, allowing flexibly stop propellers at a preset or fixed angle. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.

97,75

Stay updated, this item will be available soon!

Payment methods

Technical specifications

Weight: 87g (without cable)
Battery: 12-14S
IPC function: Optional
Size: 78.5*32.5*18.4mm
Fail storage: LOG+FAULT
THR pulse: 1100-1940μs
Communication Protocol: CAN+PWM
Max current: 100A (3s)
Cont current: 40A

More Details
