Hobbywing V9626 160KV IPC VTOL Drone Motor

The Hobbywing V9626 160KV IPC is a heavy-duty motor designed for VTOL fixed-wing UAVs, equipped with Intelligent Propeller Control (IPC) technology. Delivering extreme thrust, reliable performance, and reduced drag during cruise, it is built for large-scale mapping, inspection, and logistics missions.

Key Features

Extreme Heavy-Lift Capability

• Maximum thrust: 38.5 kg (with GP32×10.5″ prop @ 46V, full throttle, lab tested)

• Recommended thrust per rotor: 12–16 kg

• Supports UAVs with MTOW 50–64 kg

• Thrust-to-weight ratio up to 39:1

Intelligent Propeller Control (IPC)

• Precisely stops propeller position during fixed-wing cruise

• Reduces aerodynamic drag and vibration, extending endurance

• Seamless integration with Hobbywing IPC ESCs

Optimized Magnetic Circuit

• Provides high torque with powerful burst performance

• Stable and efficient under sustained heavy load conditions

• Flexible compatibility with multiple large propellers

Durability & Industrial Build

• High-standard silicon steel stator with rust-proof treatment

• 200°C enamelled copper winding and 180°C-rated magnets

• Waterproof bearings ensure reliability in harsh environments

• Passed 500V AC high-voltage insulation test

Efficient & Reliable Cooling

• Dynamic balance ≤15 mg for stable high-speed operation

• IP5 protection against dust and debris

• Rotor casing designed for consistent cooling and durability

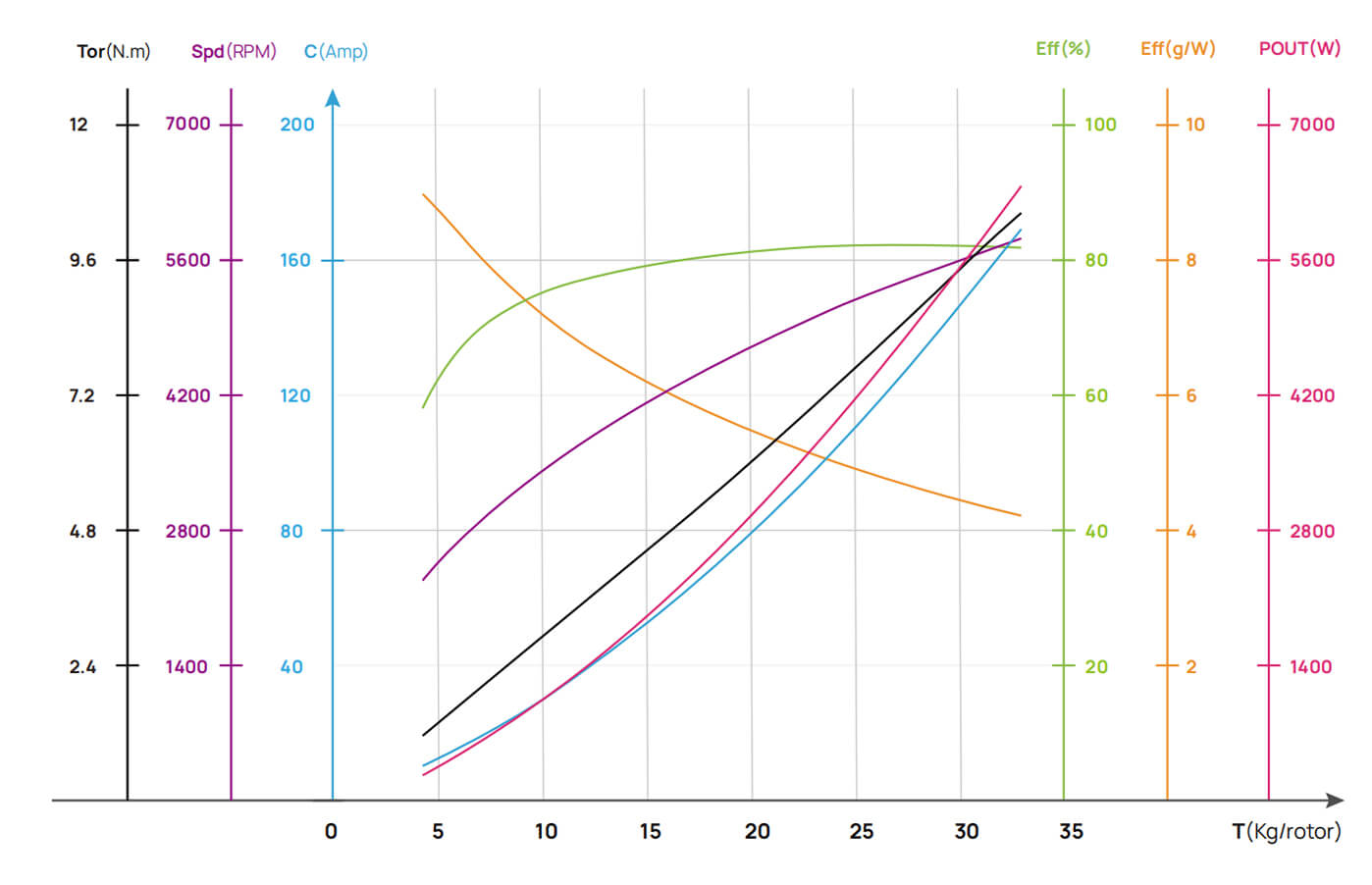

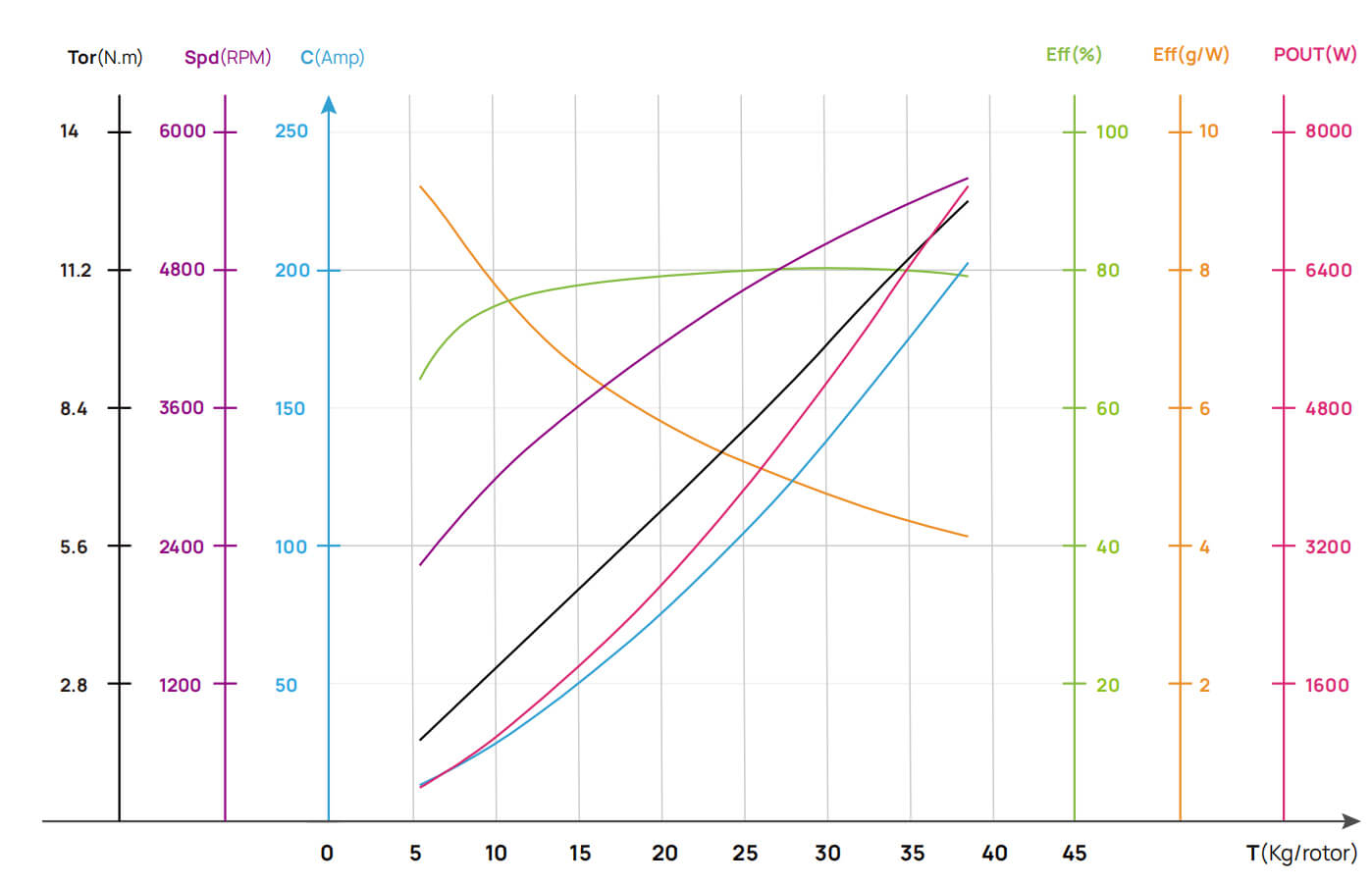

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
