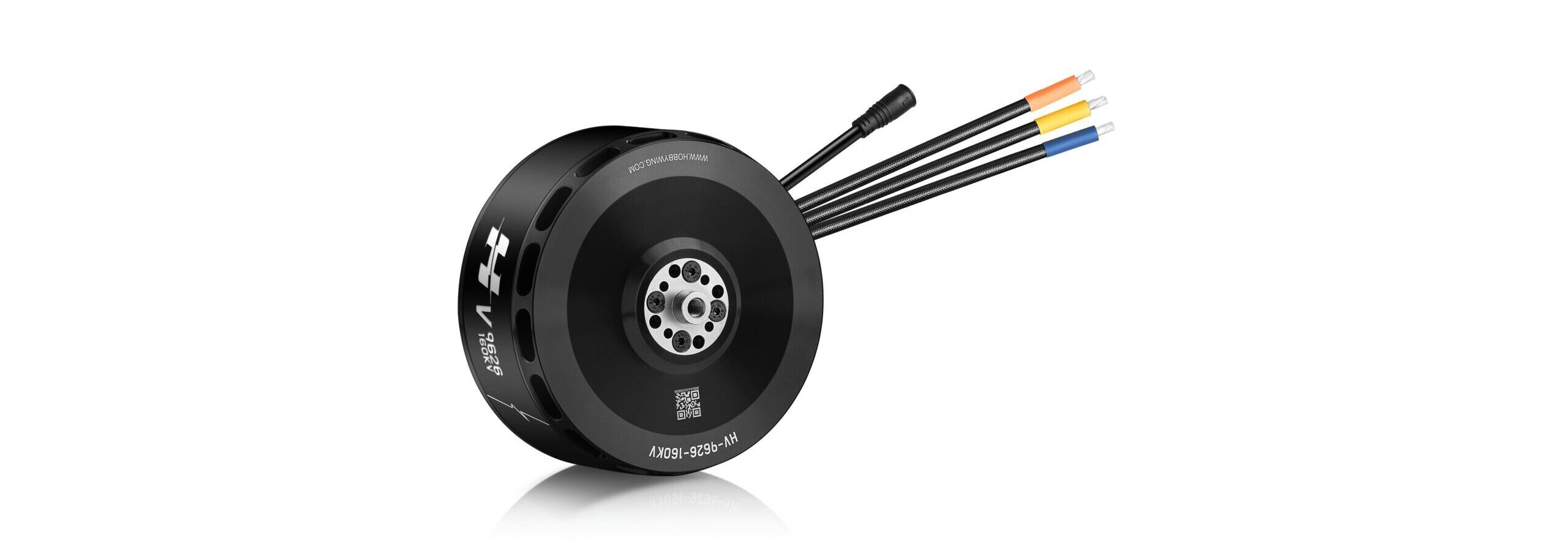

Hobbywing V9626 160KV VTOL Drone Motor

The Hobbywing V9626 160KV is a heavy-duty motor engineered for VTOL fixed-wing UAVs. Combining high torque, explosive power, and advanced IPC compatibility, it ensures reliable lift, efficient cruising, and long service life for demanding applications such as mapping, inspection, and emergency response.

Key Features

Extreme Heavy-Lift Capability

• Maximum thrust: 38.5 kg (with GP32×10.5″ prop @ 46V, full throttle, lab tested)

• Recommended thrust per rotor: 12–16 kg

• Suitable for quadrotors with MTOW 50–64 kg

• Thrust-to-weight ratio up to 39:1

Optimized Magnetic Circuit

• Provides both high torque and strong explosive power

• Ensures stable performance even under heavy load conditions

• Flexible fixed-prop compatibility supports multiple propeller options

Durability & Premium Build

• Stator: high-standard silicon steel sheet with rust-proof coating

• 200°C enamelled winding and 180°C-rated magnets

• Waterproof bearings for industrial-grade reliability

• Passed 500V AC high-voltage insulation test

Efficient & Reliable Design

• Dynamic balance: ≤15 mg for smoother operation

• IP5 protection level against dust and particles

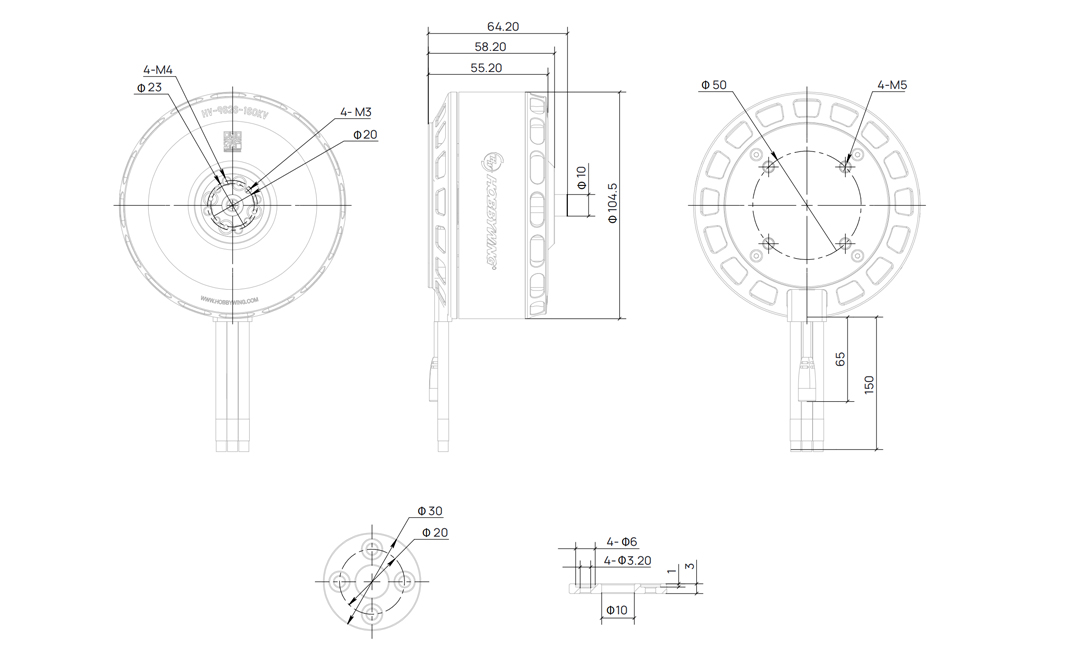

• Standardized mounting interface for easy integration

Intelligent Propeller Control (IPC) Ready

• Supports IPC with Hobbywing ESCs for precise prop stop positioning

• Reduces drag in cruise flight, extending endurance

• Low power consumption during propeller positioning

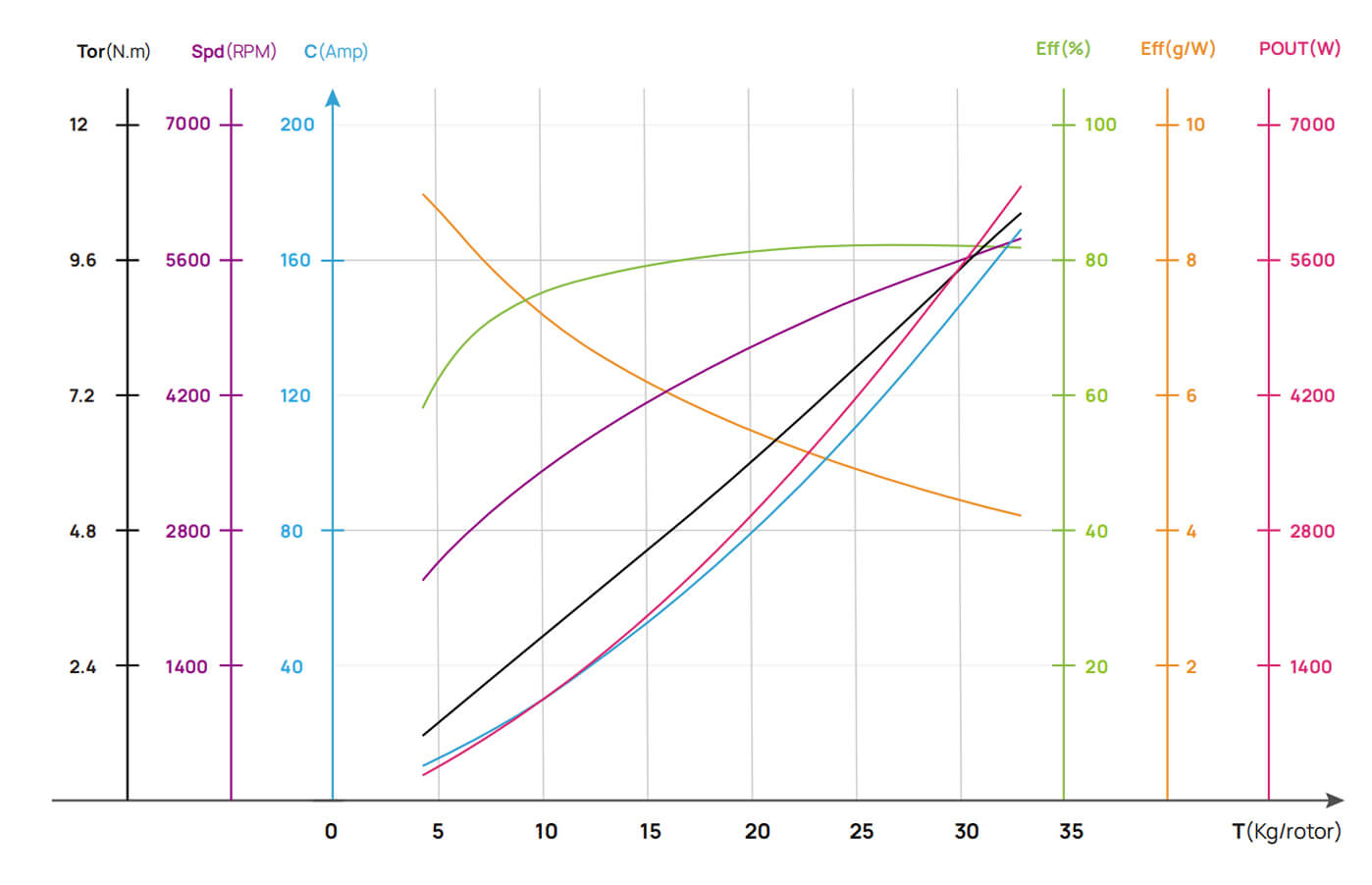

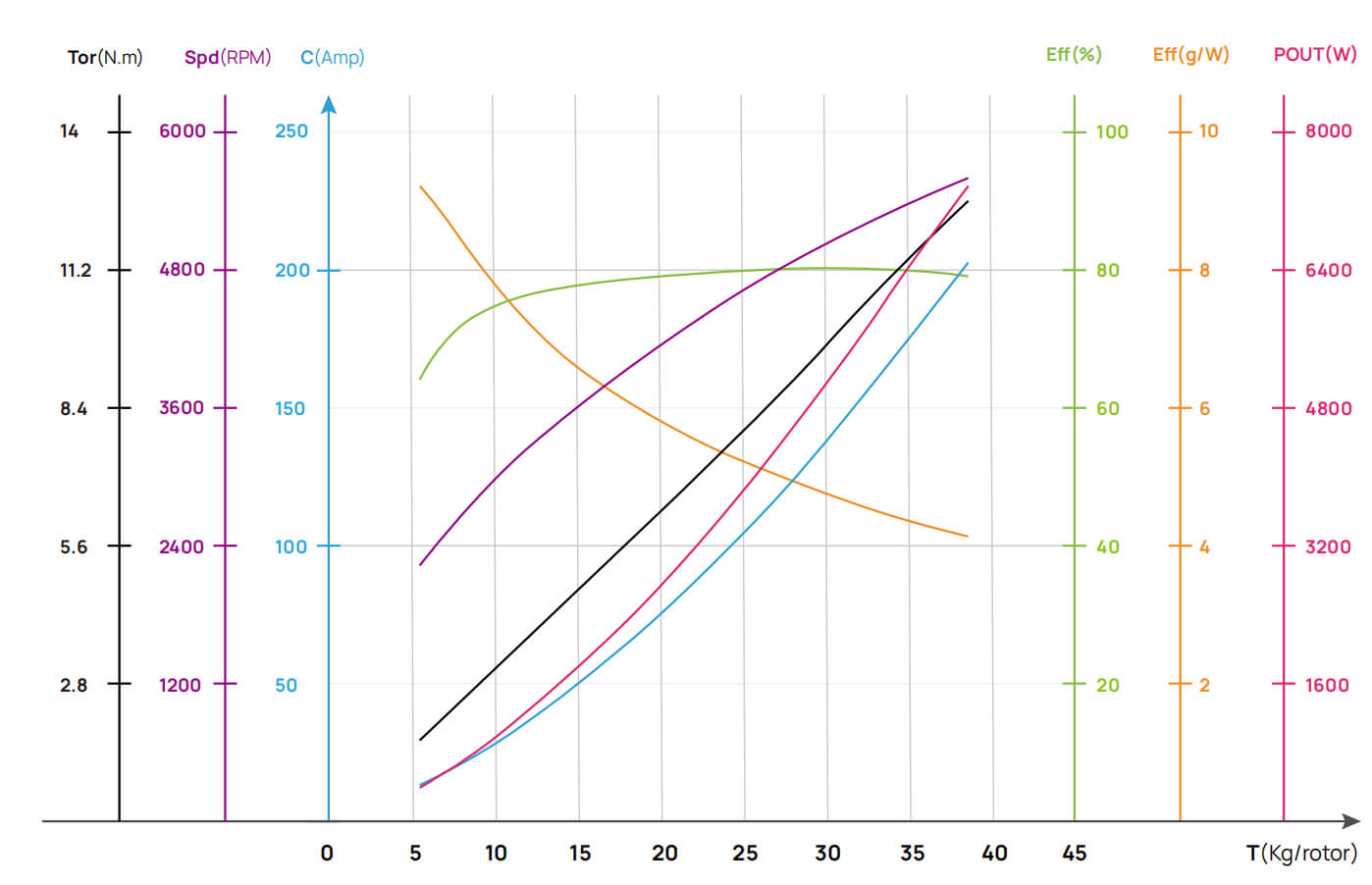

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
