Hobbywing M8108 HP Industrial Drone Motor (85KV)

The Hobbywing M8108 HP is a long-endurance industrial motor built for heavy-duty multirotor UAVs. With high-grade materials, advanced magnetic circuit design, and efficient cooling, it delivers stable thrust, excellent efficiency, and reliable performance for mapping, inspection, and industrial applications.

Key Features

High Efficiency & Endurance

• Recommended thrust per rotor: 3.5 kg+

• Efficiency: 11 g/W+ for extended flight times

• MTOW up to 12 kg (quadcopter)

• Achieves up to 120 minutes endurance with 12S 36Ah battery

Advanced Magnetic Circuit Design

• Optimized back-EMF harmonics for smoother ESC matching

• Produces higher-quality sine waves for stable throttle response

• Improves flight stability and reduces energy loss

Durable Protective Build

• Fully enclosed structure with IP45 protection level

• Rotor bracket integrates centrifugal air-cooling system

• Large-area stator heat sinks improve cooling efficiency

Attention to Detail

• Integrated bracket and rotating shaft improve coaxiality, reduce part count

• Tail spindle secured with three M2.5×8 washer-locking screws for reliability

• Lightweight yet robust construction for long service life

Premium Materials

• Built with high-grade raw materials and strict tolerances

• Anti-rust and corrosion-resistant surface treatments

• NSS-certified for industrial-level reliability

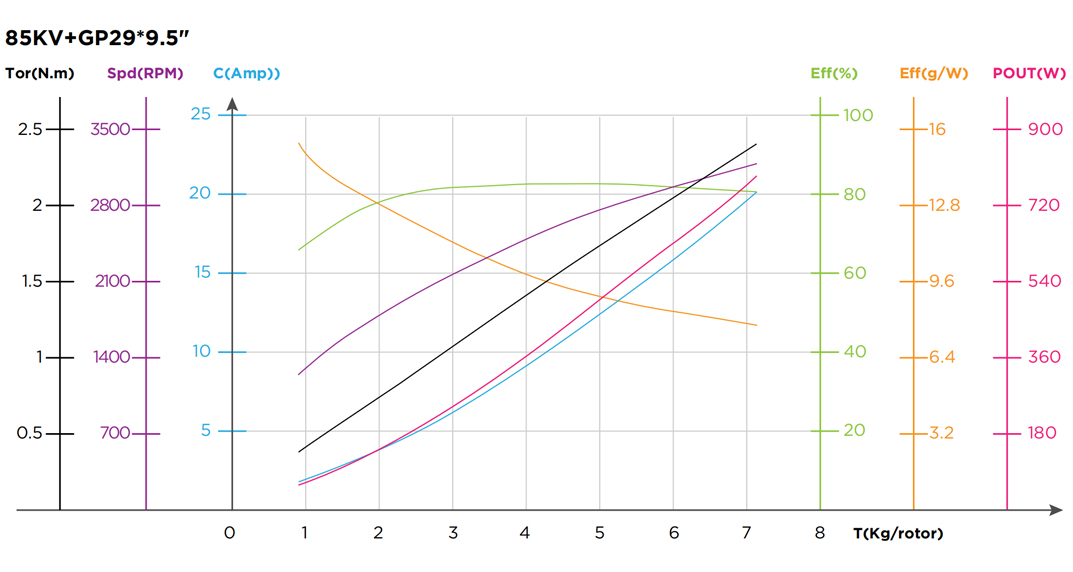

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description
