Hobbywing M6215 HP 160KV Industrial Drone Motor

The Hobbywing M6215 HP 160KV is a high-performance industrial drone motor designed for professional multirotor UAVs. With its advanced magnetic circuit, robust materials, and superior protective design, it delivers stable thrust, high efficiency, and long-term reliability for mapping, aerial photography, logistics, and inspection missions.

Key Features

Efficient & Powerful

• Maximum thrust: up to 3.5 kg per rotor

• Recommended per rotor thrust: 2.5–3.5 kg

• Suitable for quadcopters with a takeoff weight of 10–14 kg

Optimized Magnetic Circuit

• Refined sinusoidal motion reduces harmonics and improves ESC matching

• Ensures smoother throttle response and more stable flight performance

Durable & Protective Build

• Semi-enclosed bracket and bottom cover with dust-proof grilles

• Excellent resistance against dust and sand in harsh environments

• Nickel-plated electrophoresis casing for corrosion resistance

• High-toughness carbide main shaft for added durability

High-Quality Materials

• Low-loss silicon steel sheets with anti-rust treatment

• Waterproof outlet protection with rubber wire buckle

• Precision bearings for smooth operation and long service life

Safety & Reliability

• Shaft end uses cir-clip + pressure ring + screw interlocking structure

• Prevents detachment during operation, ensuring safe flights

• Certified by NSS48 for enhanced reliability

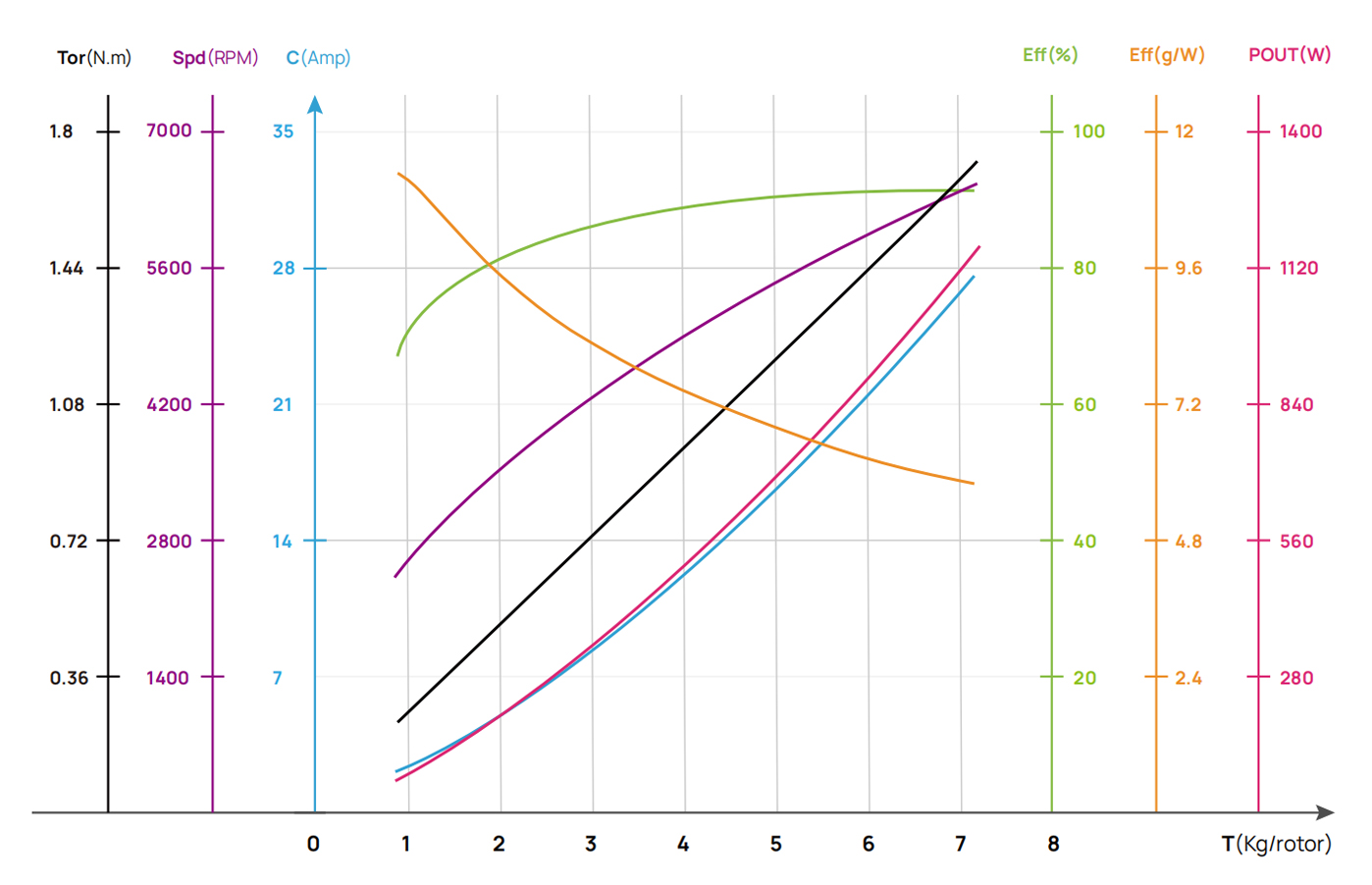

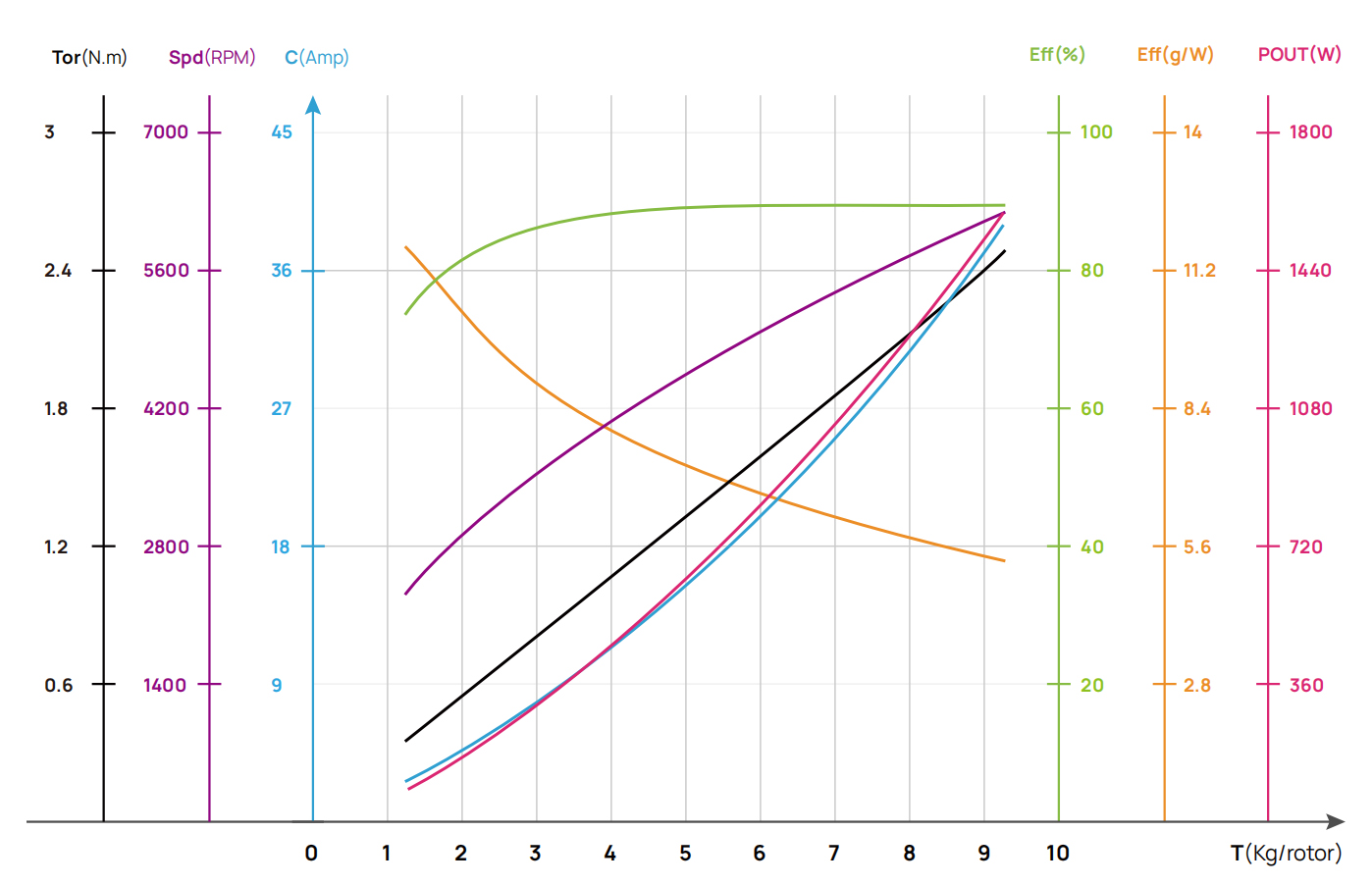

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
