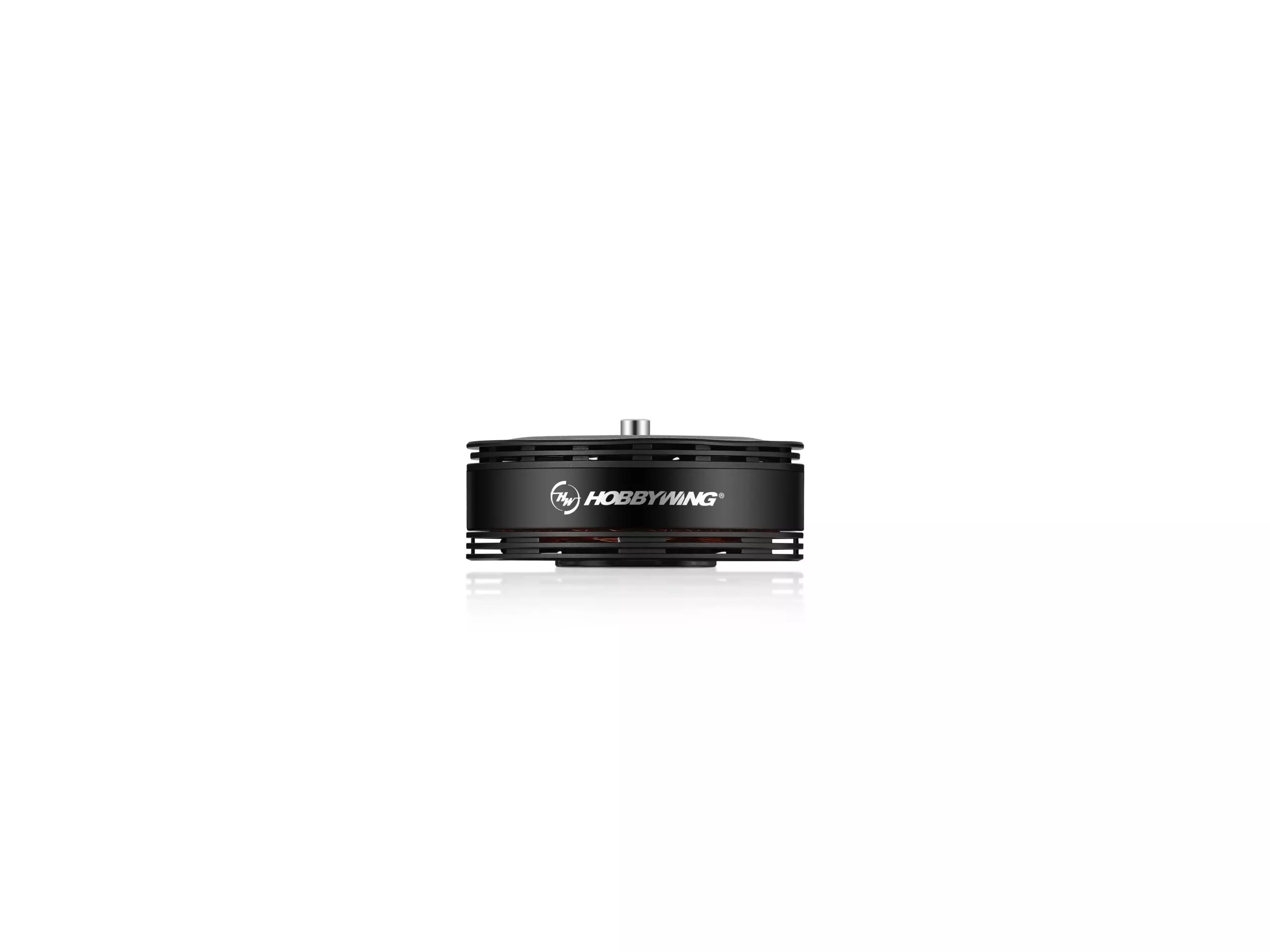

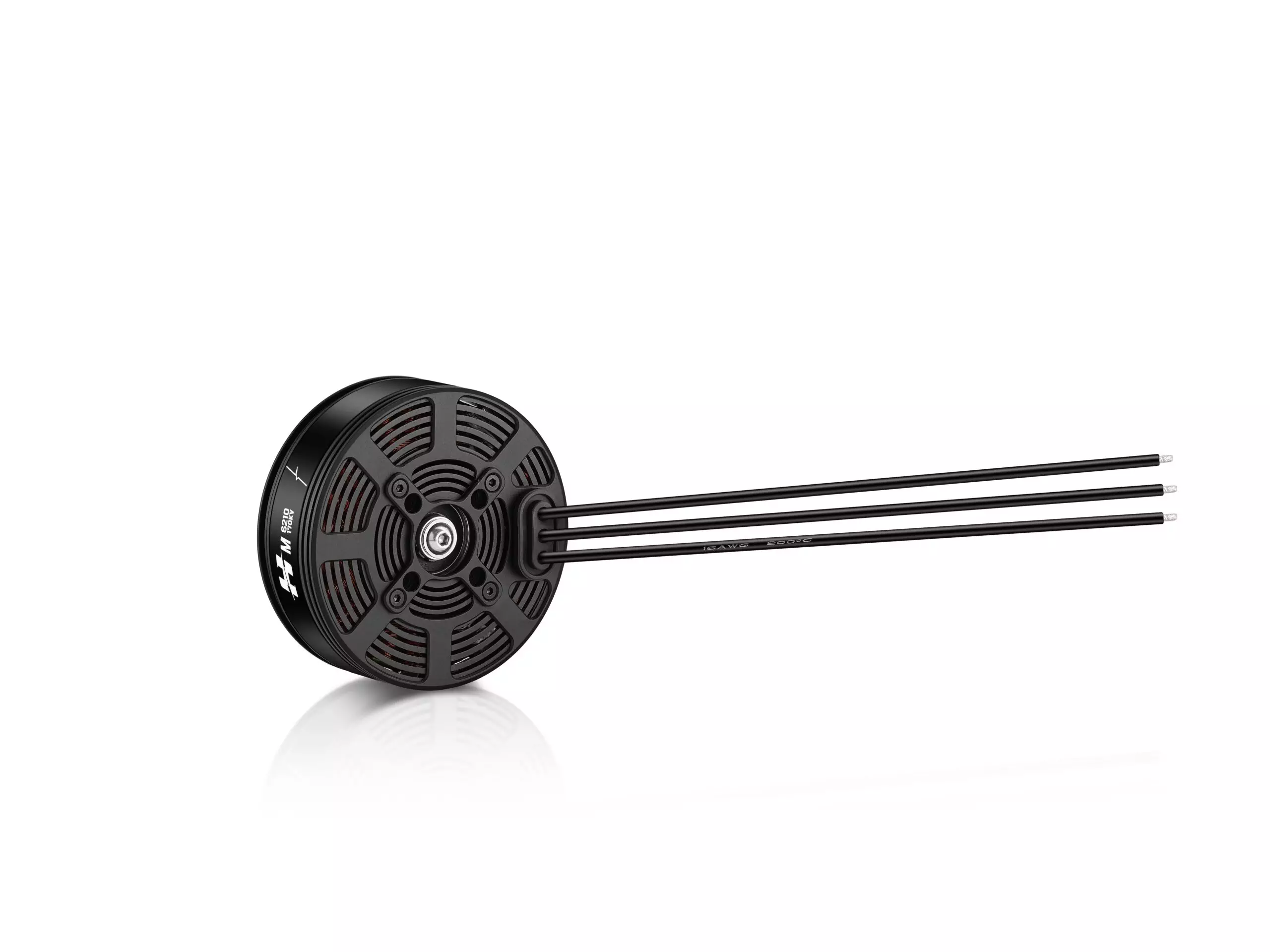

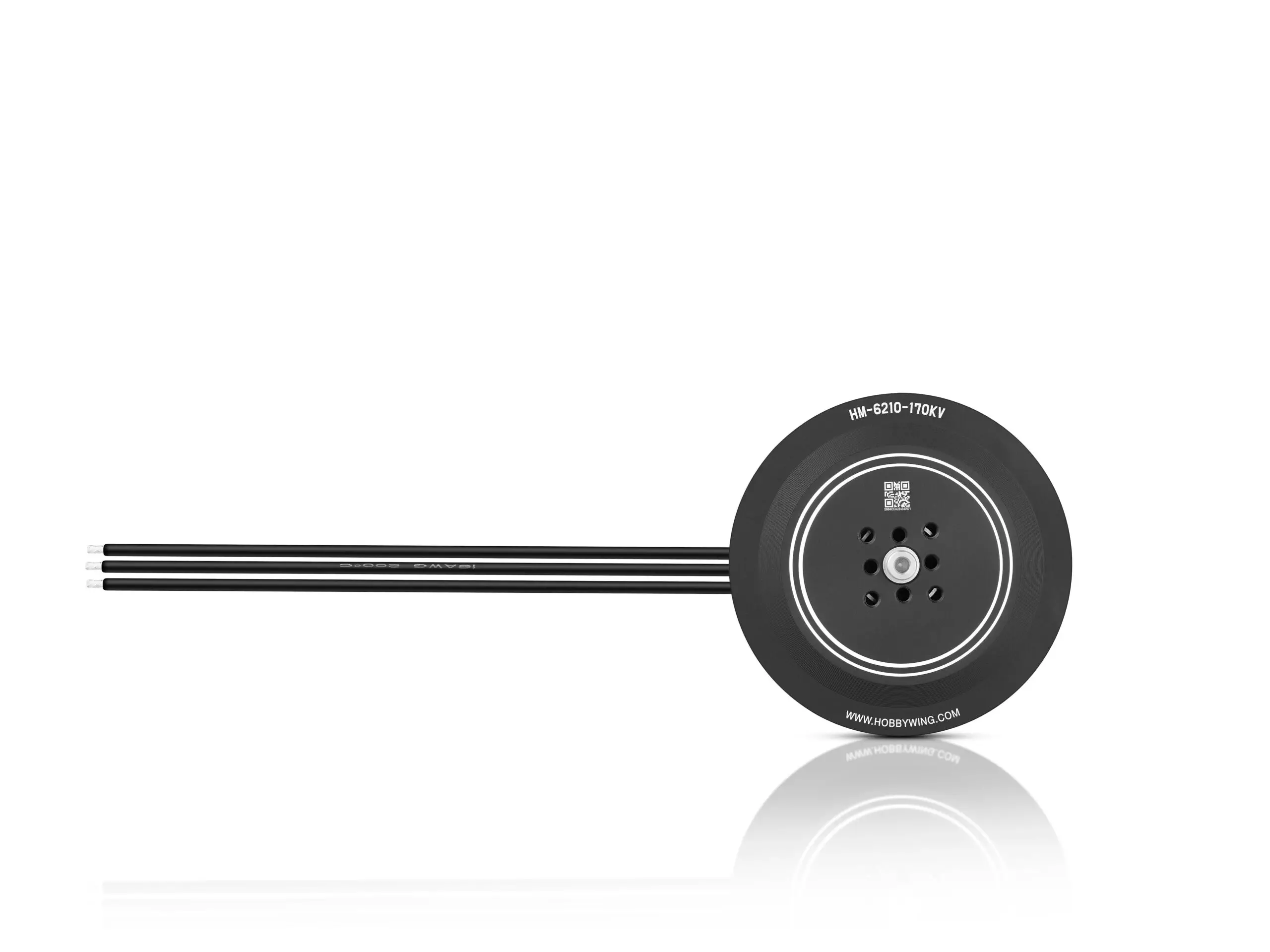

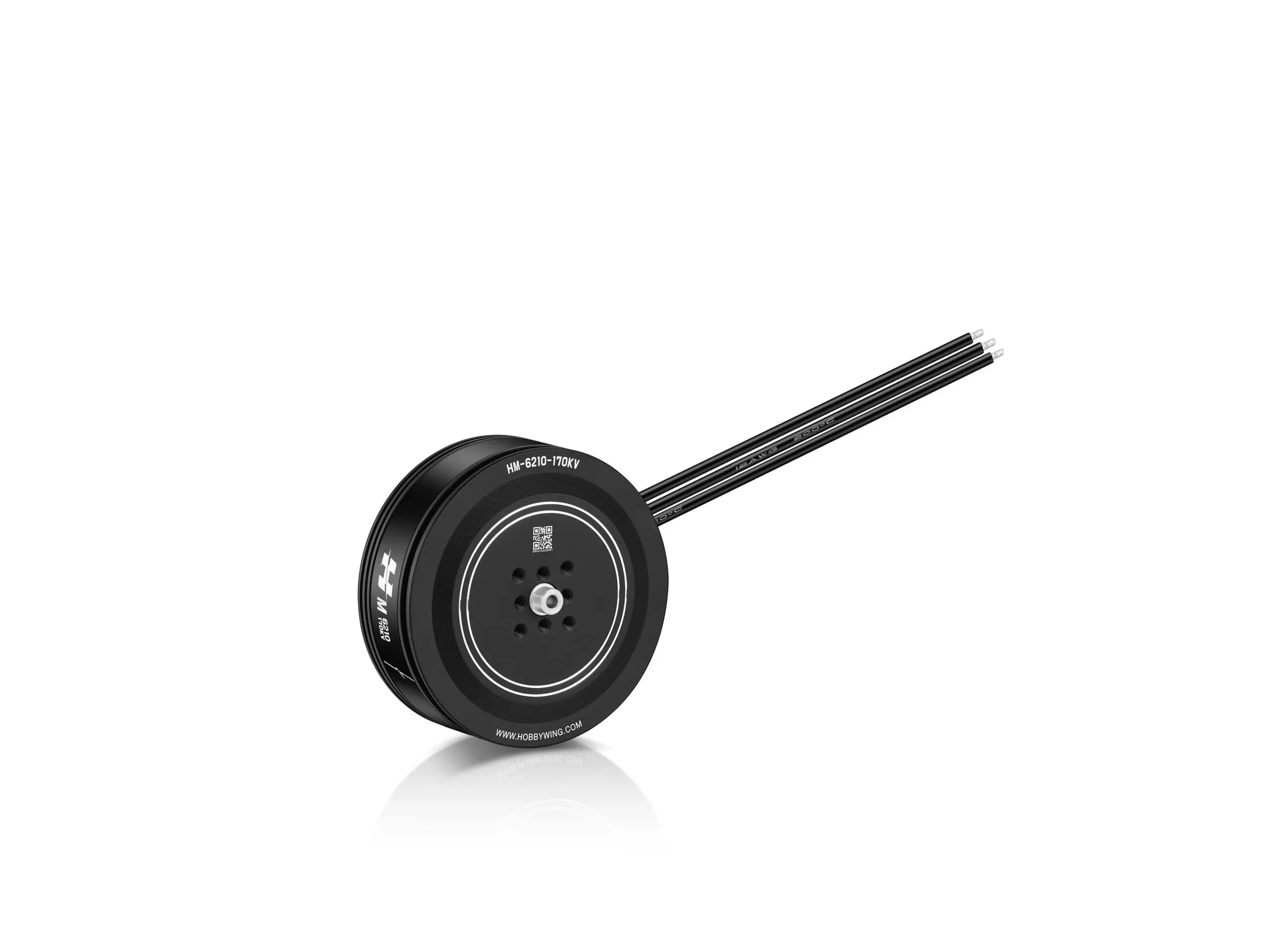

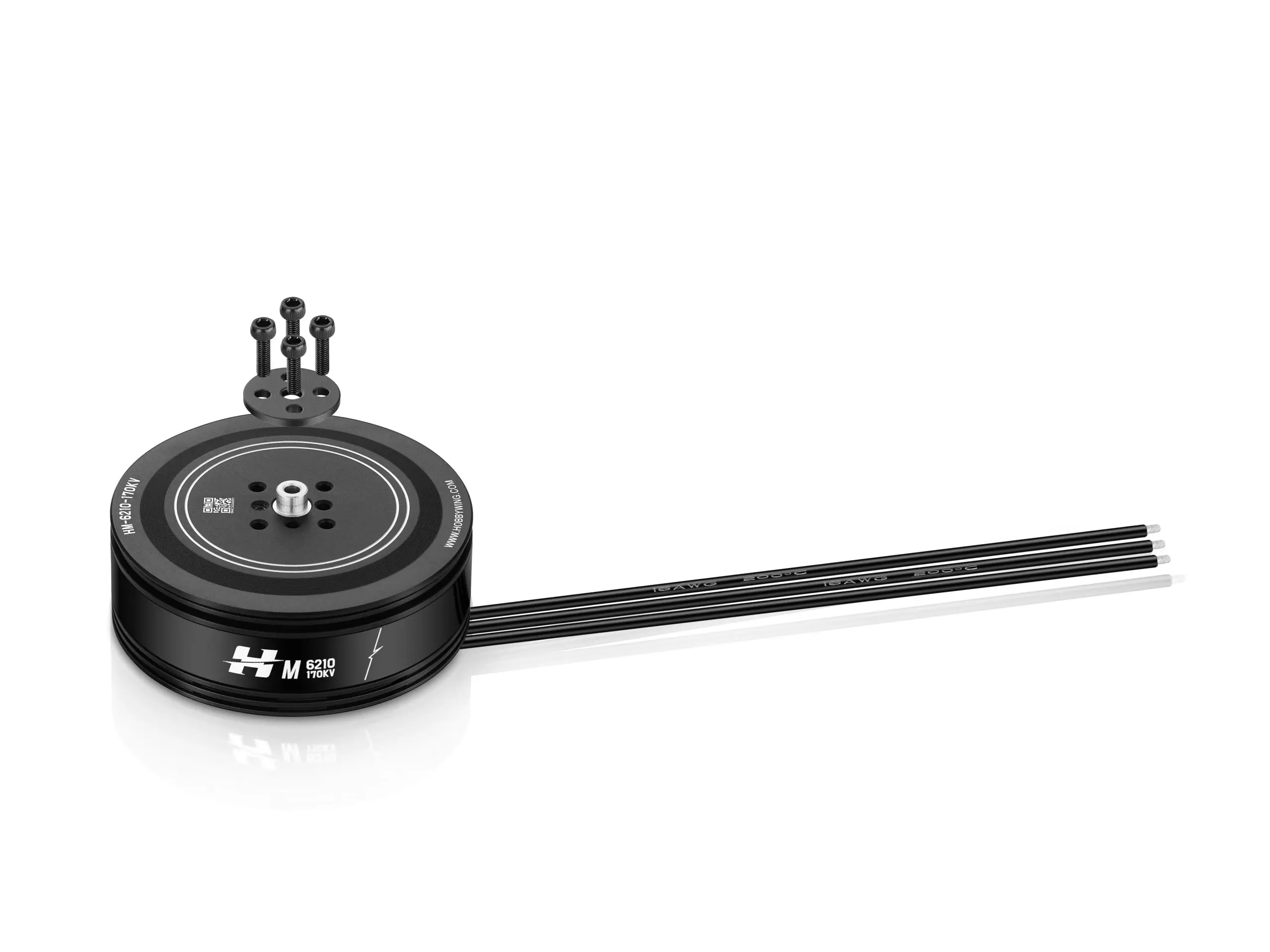

Hobbywing M6210 HP 170KV Industrial Drone Motor

The Hobbywing M6210 HP 170KV is a high-efficiency industrial motor engineered for professional multirotor drones. With advanced magnetic circuit design, robust protective features, and premium materials, it provides stable thrust, reliable operation, and long service life, making it ideal for mapping, aerial photography, and industrial UAV applications.

Key Features

Efficient Power & Stable Flight

• Recommended thrust per rotor: 2.2–2.7 kg

• Supports quadcopters with takeoff weight of 9–11 kg

• Optimized for long-endurance and stable performance with 12S LiPo batteries

Advanced Magnetic Circuit

• Optimized sinusoidal motion reduces harmonics for smoother ESC matching

• Ensures precise throttle response and improved flight stability

Durable Protective Design

• Semi-enclosed bracket and bottom cover with dust-proof grilles

• Nickel-plated electrophoresis treatment for anti-rust and anti-corrosion protection

• High-toughness carbide shaft for added reliability

Premium Materials

• High-performance iron core made from low-loss silicon steel sheets

• Anti-rust and corrosion-resistant coating extends motor lifespan

• NSS48 certified for industrial-grade reliability

Safety & Reliability

• Shaft secured with cir-clip + pressure ring + screw interlocking structure

• Prevents detachment and ensures long-term flight safety

• Waterproof wire outlet protection with rubber wire buckle

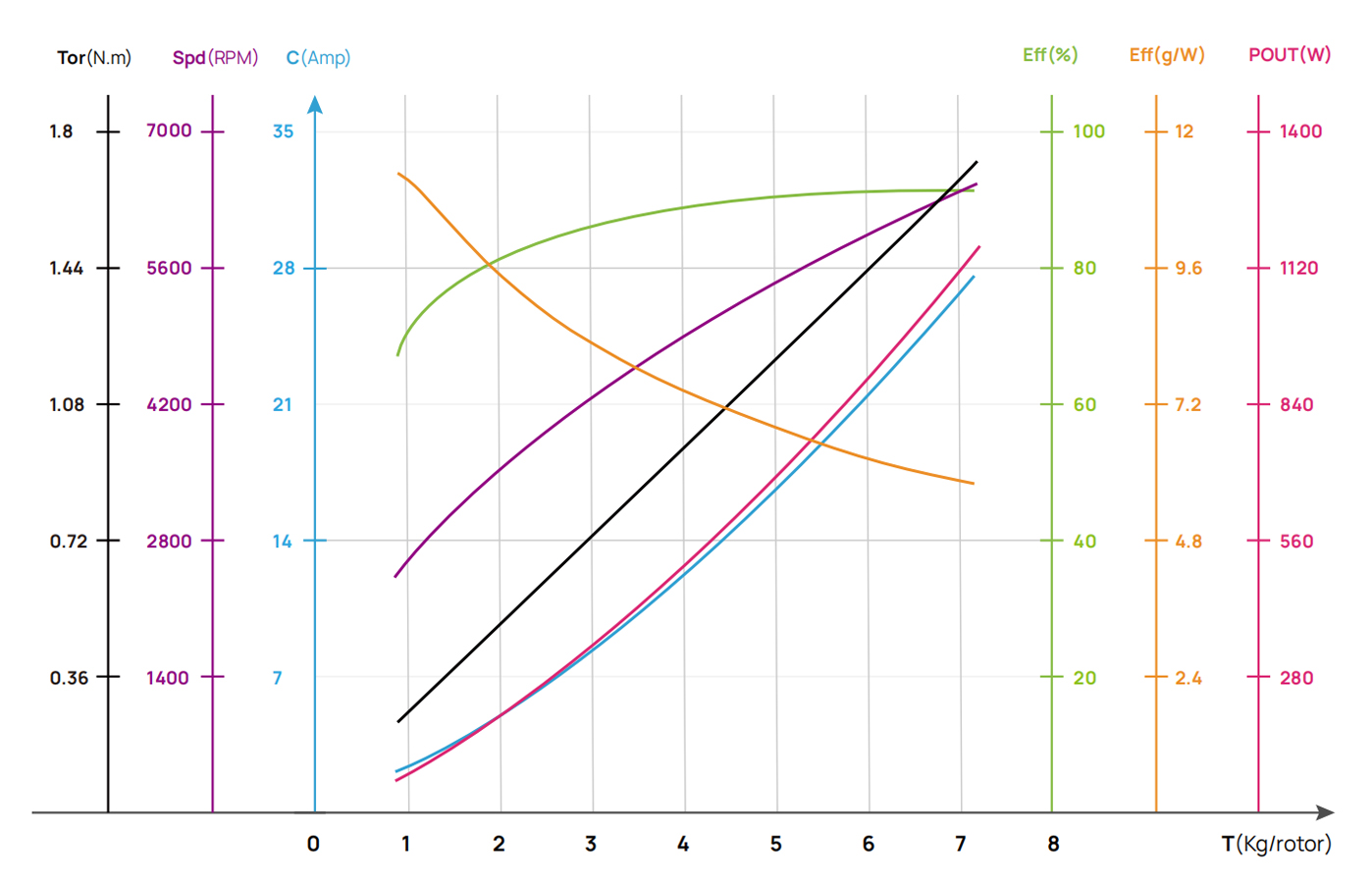

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
