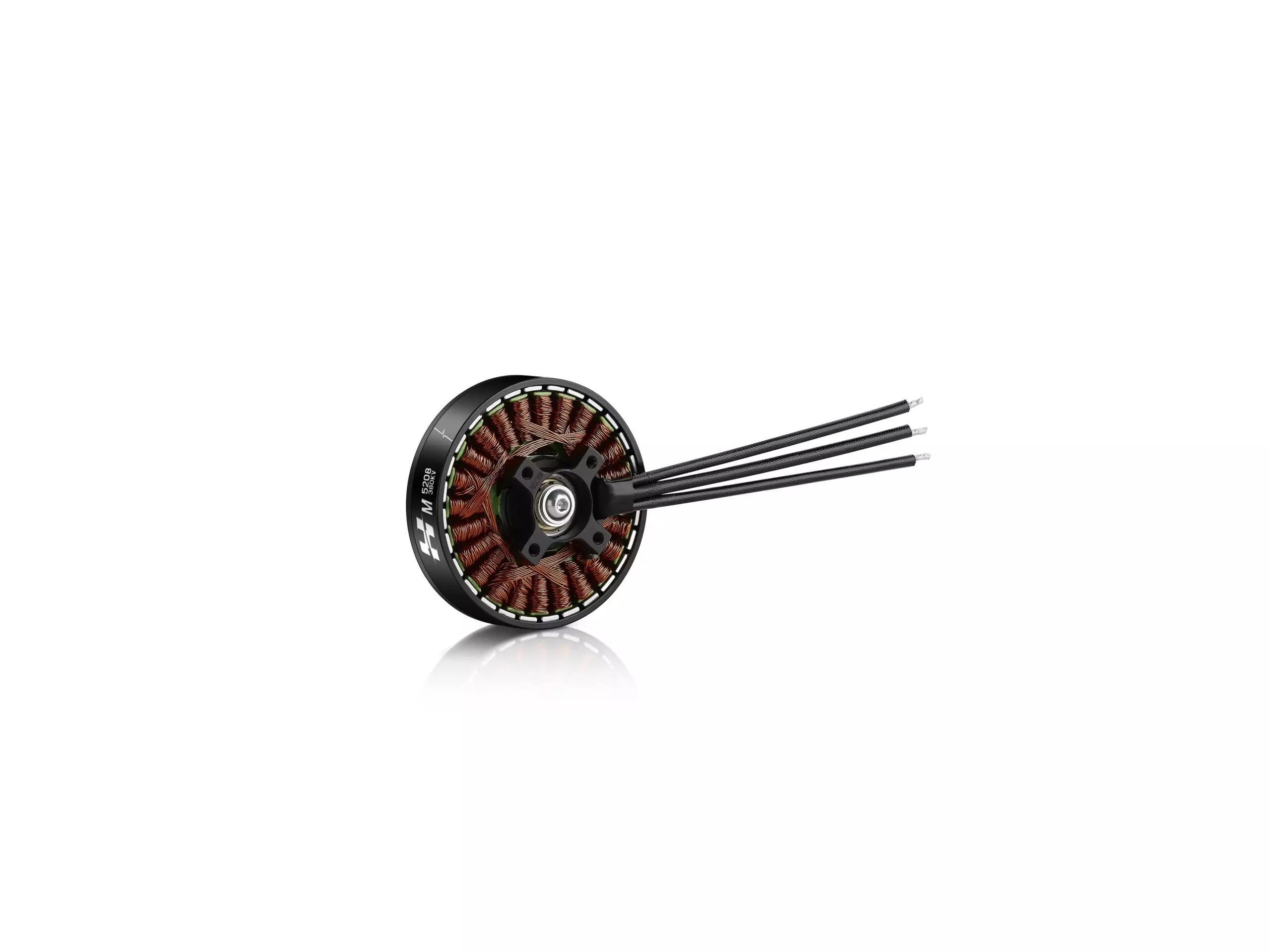

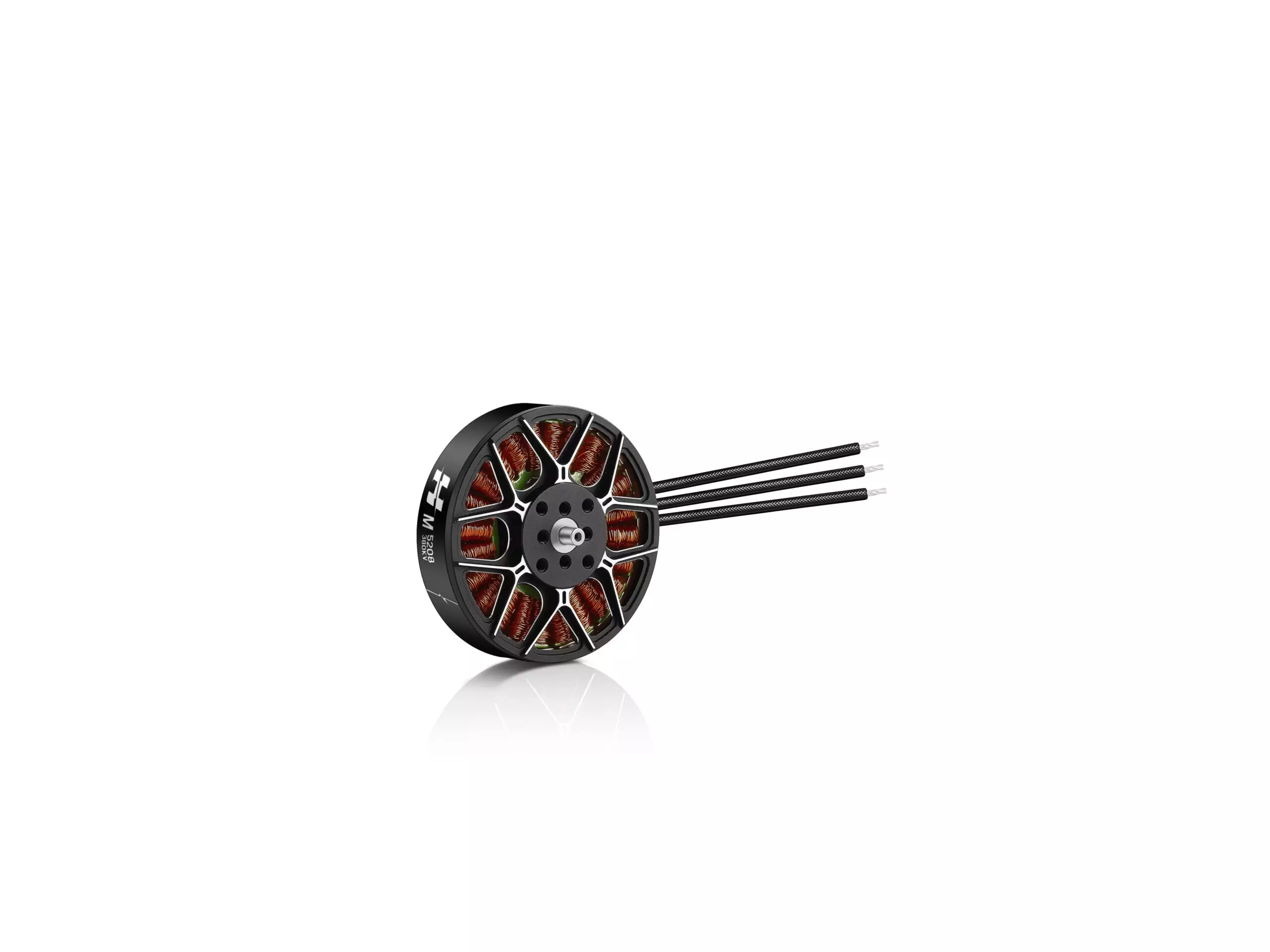

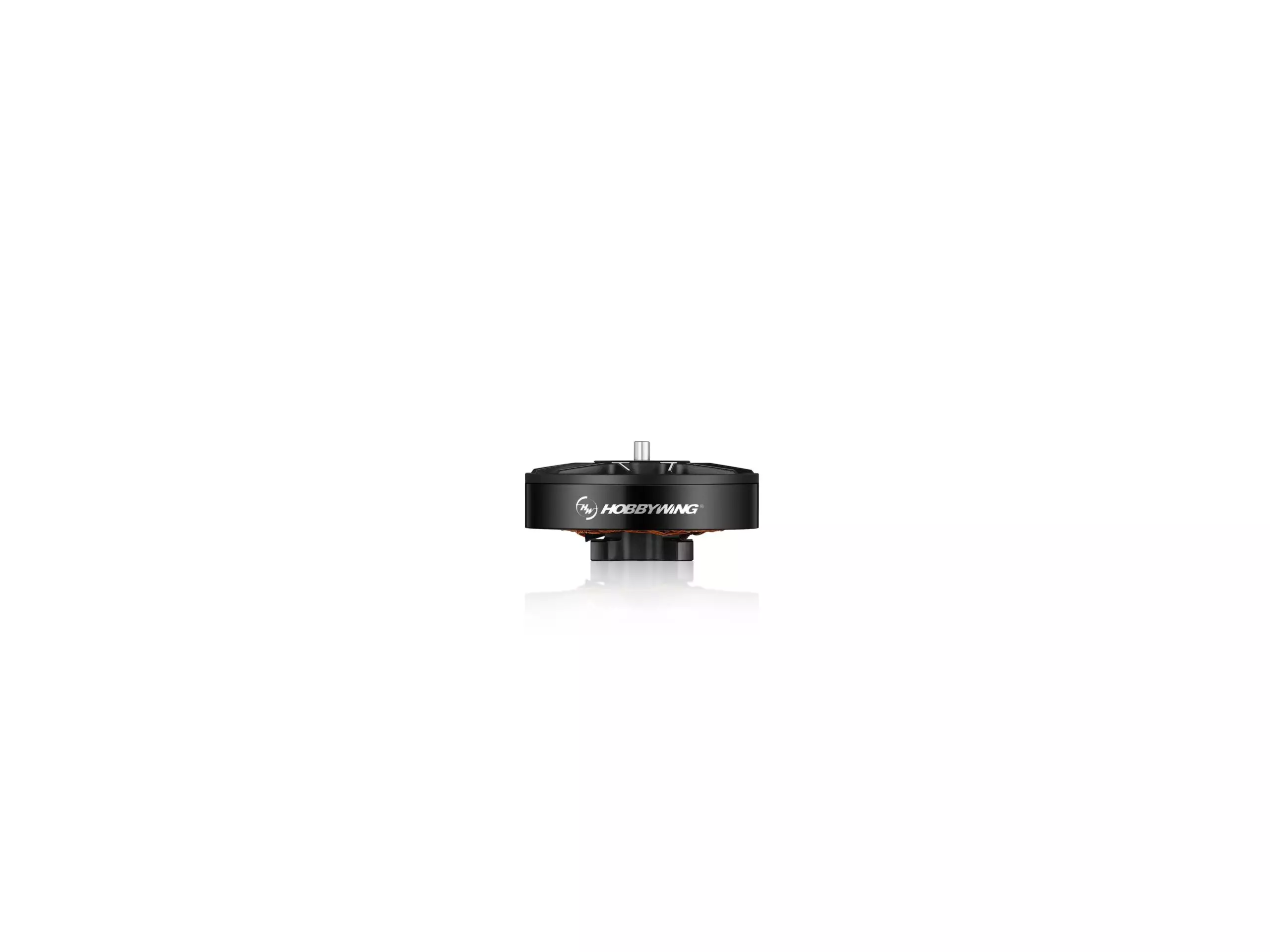

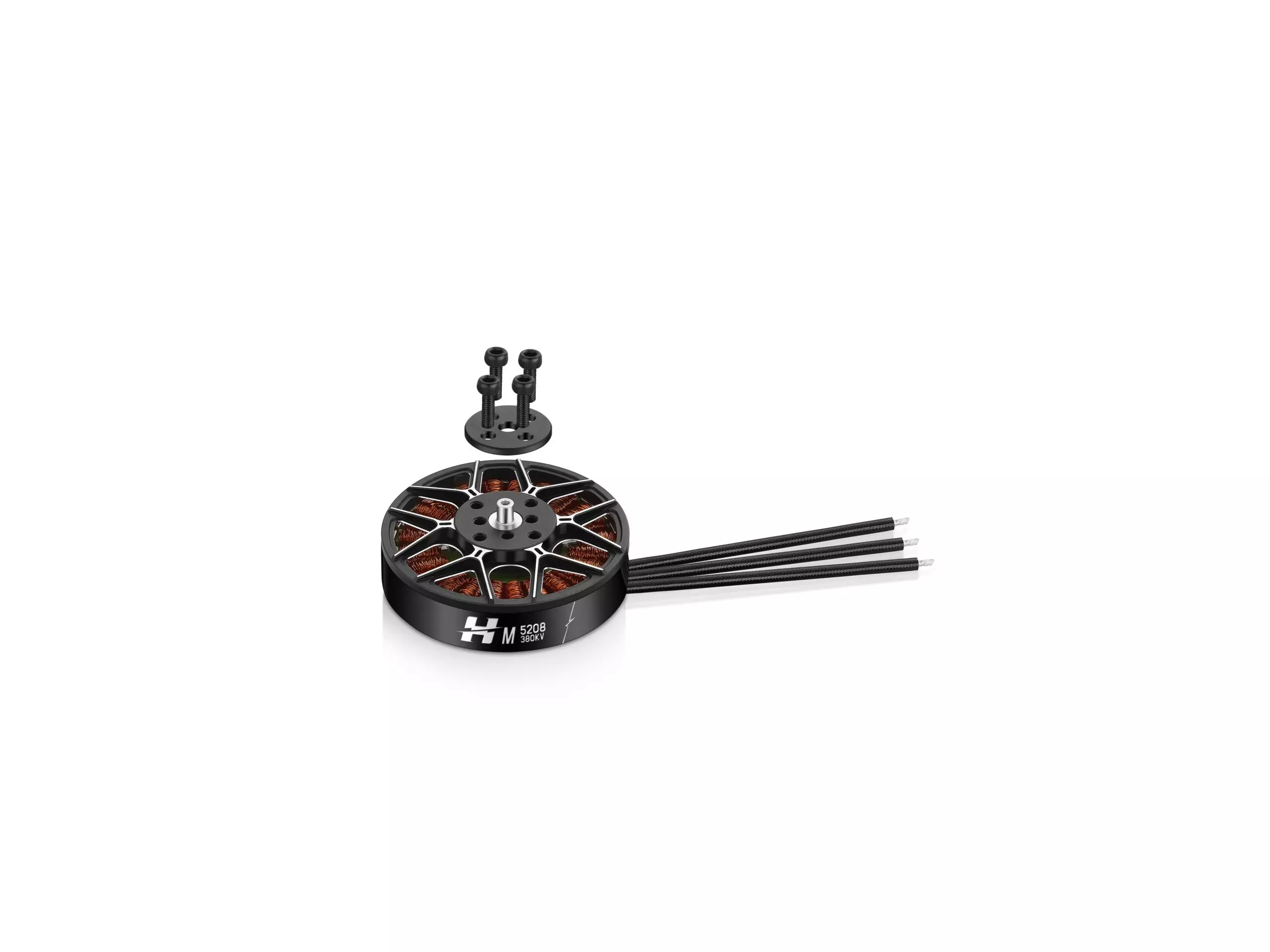

Hobbywing M5208 UL Multirotor Drone Motor (380KV)

The Hobbywing M5208 UL is a lightweight and efficient industrial drone motor designed for micro multirotors. With advanced materials, precision engineering, and high thrust-to-weight performance, it ensures safe, reliable, and long-endurance flights for mapping, inspection, and professional UAV applications.

Key Features

Efficient Power & Thrust

• Maximum thrust: 5.3 kg (380KV with MP18×6.1″ propeller @ 23V)

• Recommended thrust per rotor: 1.4–1.9 kg

• Supports quadcopters with takeoff weights of 5.6–7.6 kg

Lightweight & Reliable Design

• Weighs only 154 g for reduced propulsion system load

• Rotor casing built from 20# seamless steel tube with nickel plating for anti-corrosion

• Durable alloy main shaft with high strength and reliability

High-Quality Materials

• 200°C high-temperature resistant enameled wire

• CNC high-strength aviation aluminum stator base, lighter and harder

• High-speed precision bearings with low friction torque for longer lifespan

Safety & Stability

• Knurled shaft design prevents loosening during operation

• Shaft end secured with cir-clip + pressure ring + screw interlock structure

• Impact-resistant design ensures safer flights at high RPMs

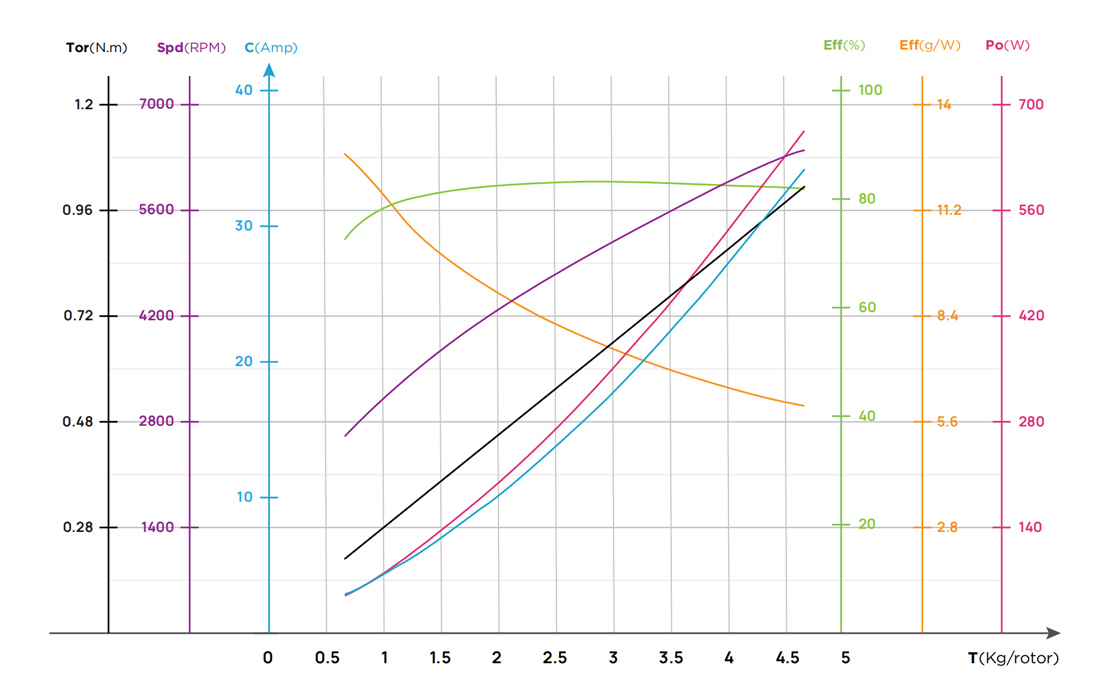

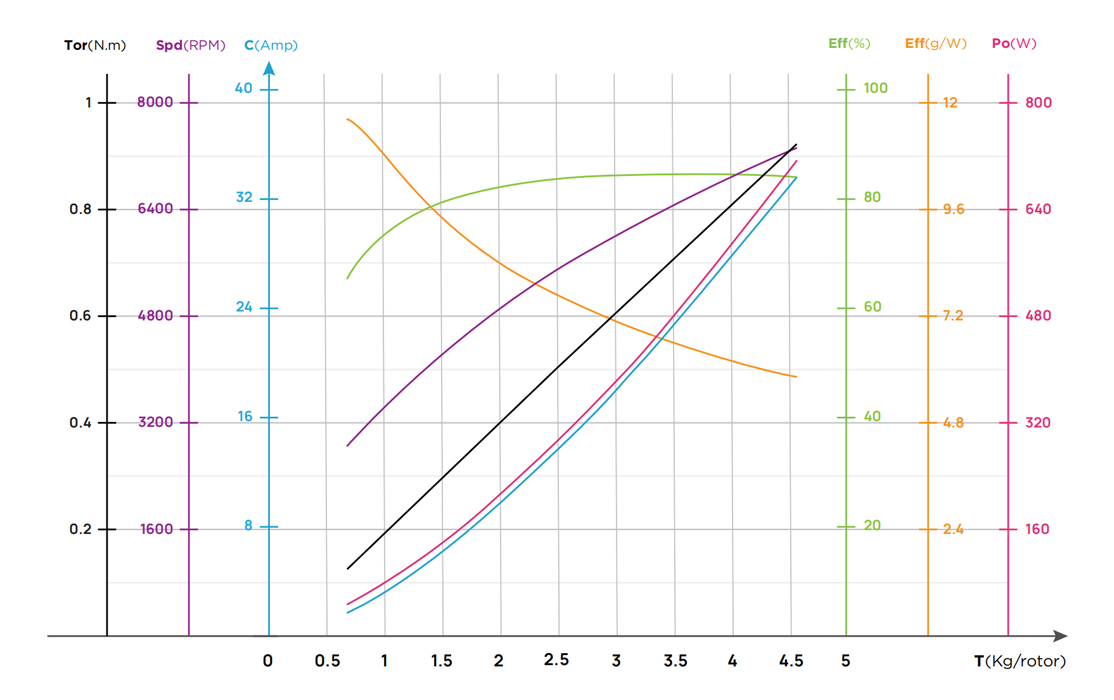

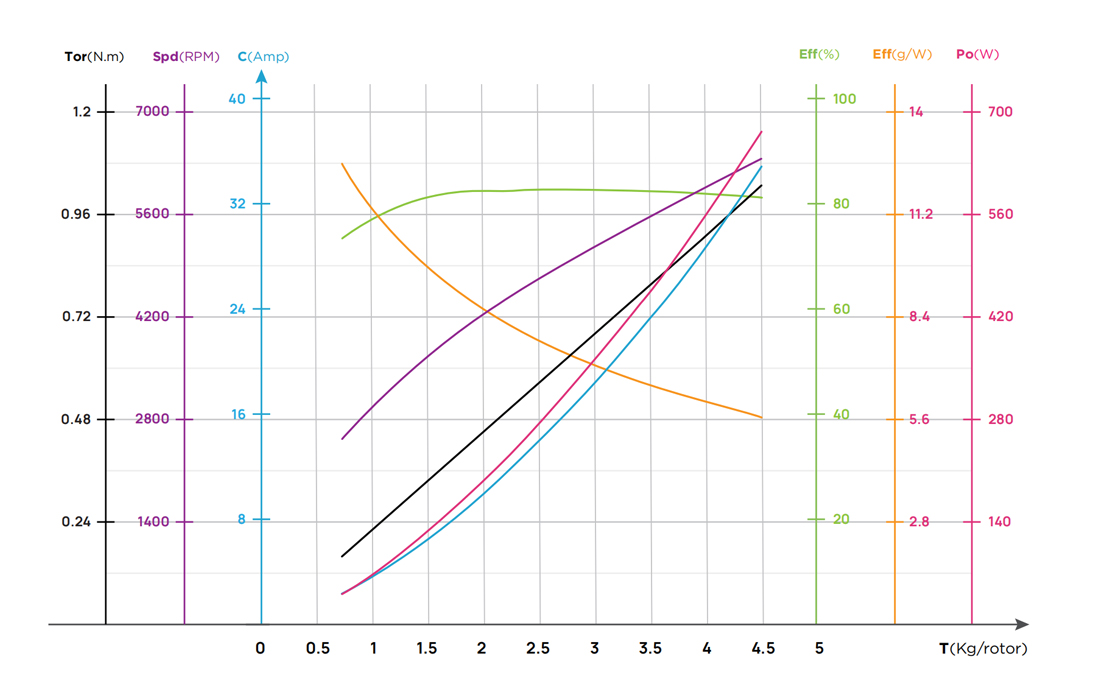

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
