C7225

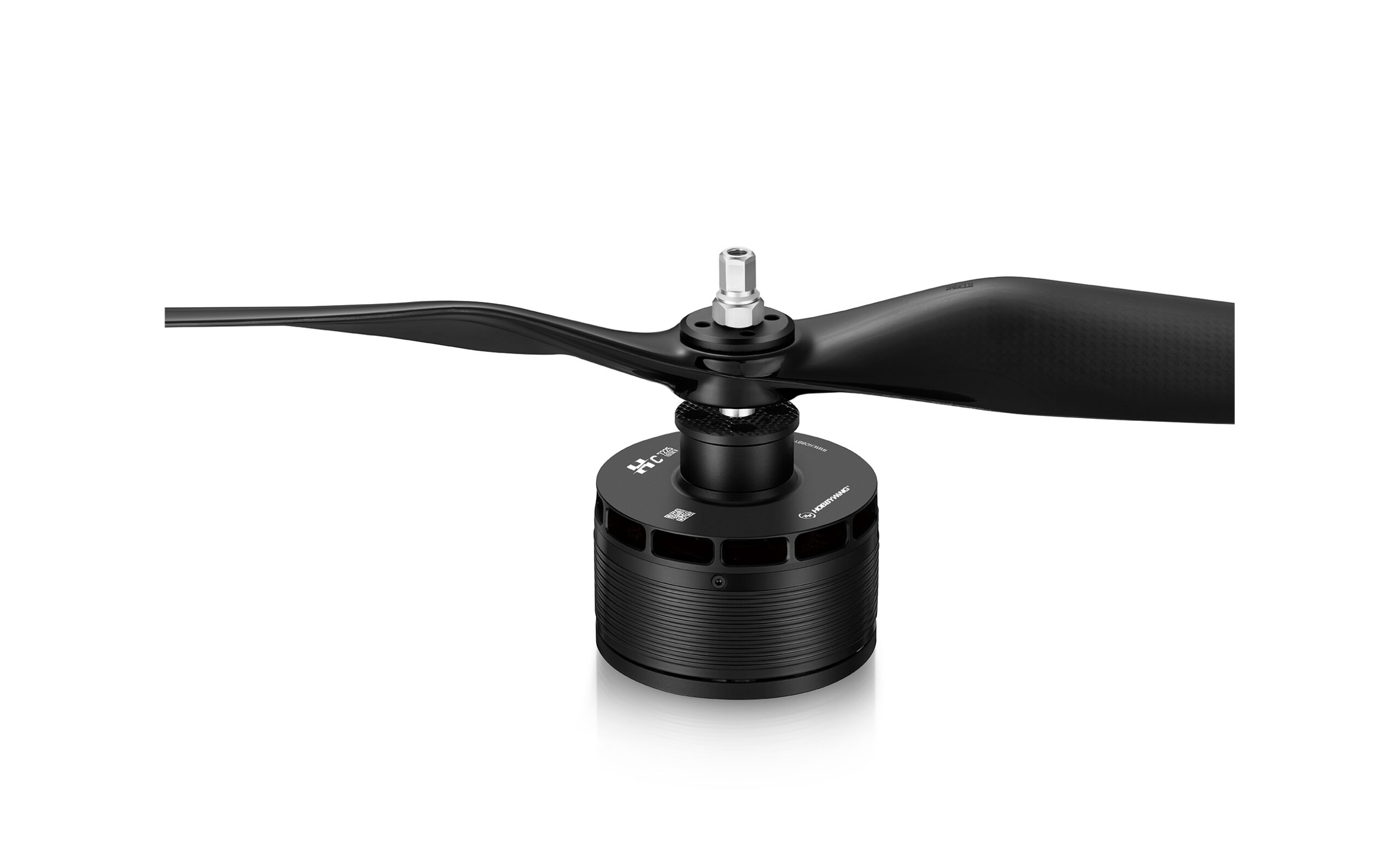

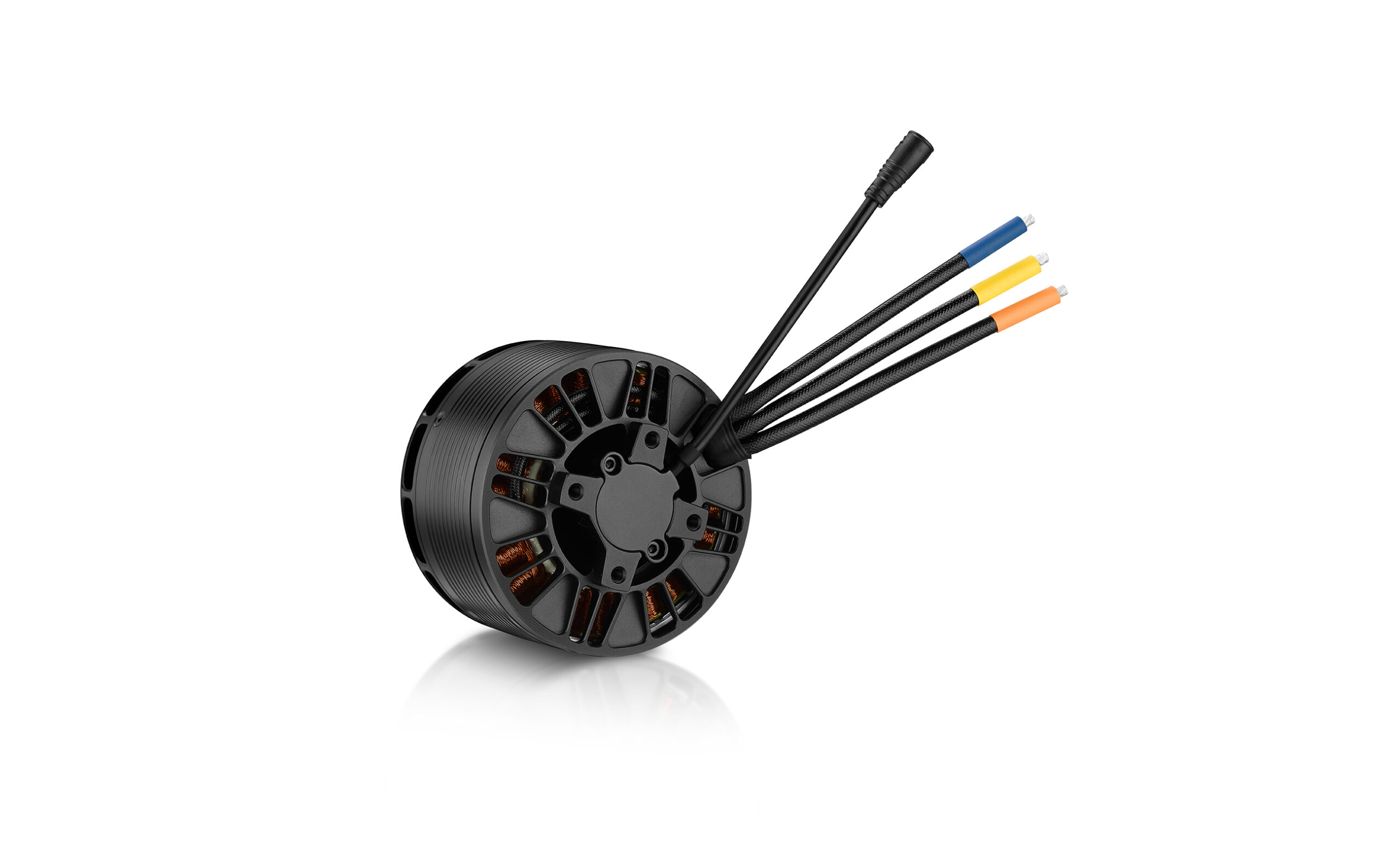

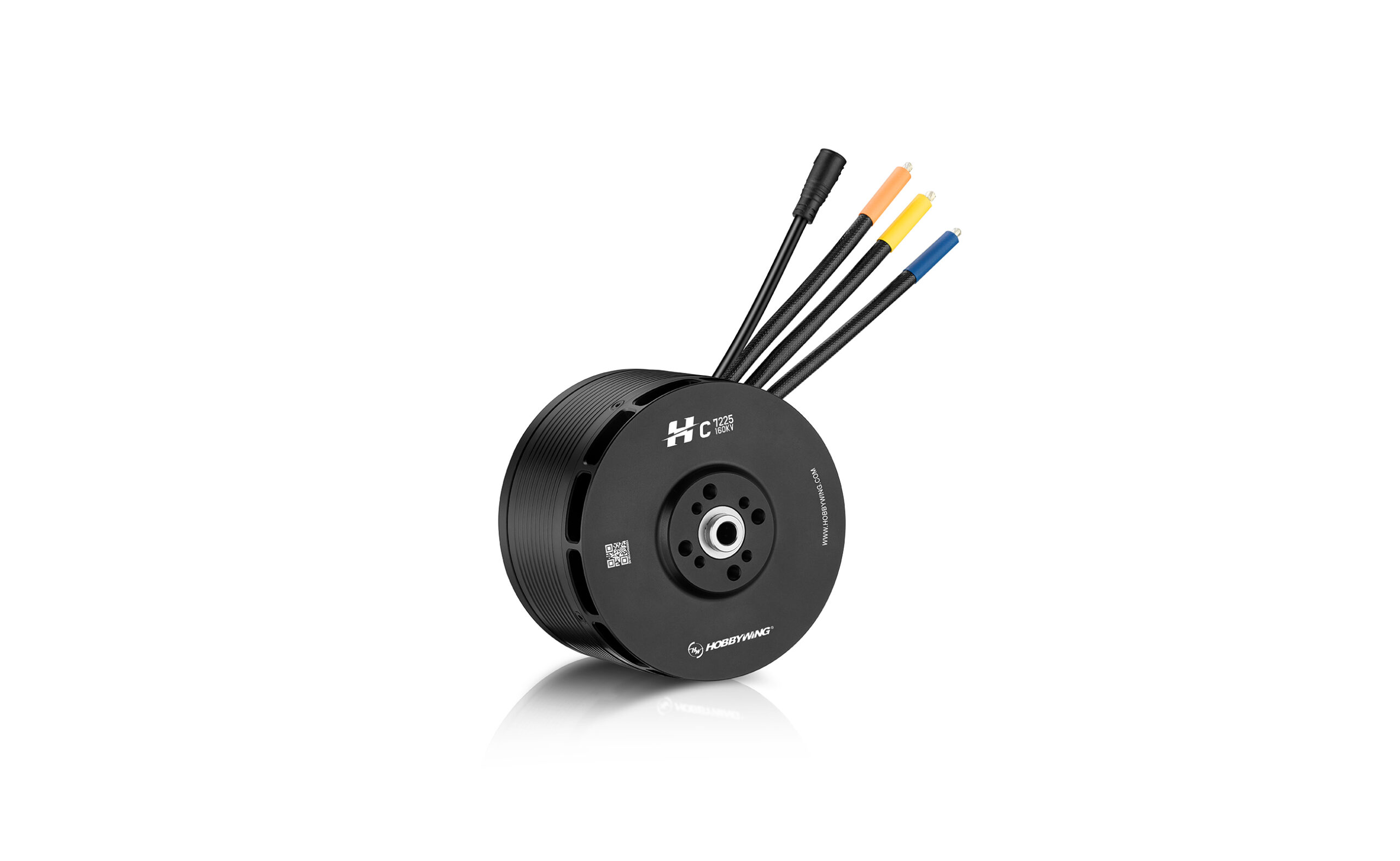

Hobbywing C7225 Fixed-Wing UAV Cruise Motor (160KV / 190KV)

The Hobbywing C7225 is a high-performance fixed-wing UAV cruise motor available in 160KV and 190KV variants, purpose-built for electric fixed-wing and VTOL UAV applications. A direct electric replacement for traditional 40CC combustion engines, it combines powerful thrust with outstanding reliability through rigorous industrial-grade engineering.

Key Features

Powerful Fixed-Wing Performance

• Available in 160KV and 190KV versions
• Delivers up to 21.7 kg thrust with 24-inch propellers at 48V
• Ideal electric alternative to 40CC gasoline engines
• Outperforms comparable motors under the same voltage conditions

Innovative Magnetic Circuit Design

• Proprietary magnetic circuit optimally matches drive parameter requirements
• Enables faster propulsion system response for improved flight dynamics
• Rectangular rotor bracket outlet reduces airflow resistance and improves cooling efficiency

Rigorous Industrial Validation

• Validated per industry standards: Drive Performance Validation (DPV), Water Ingress Testing, Salt Spray Testing, Mechanical Stress Testing, and Tri-Comprehensive (Temperature, Humidity, Vibration) Testing
• 1,000-hour laboratory fatigue life validation ensures sustained performance in harsh environments

Premium Materials & Build Quality

• Industry-leading 0.2 mm low-loss silicon steel cores with 220°C heat-resistant enameled wires
• High-grade curved magnetic tiles for enhanced magnetic energy density and torque
• Premium international-brand bearings for low friction torque and long service life
• Titanium alloy propeller mount nuts for optimal weight reduction

Versatile Application Support

• Supports tractor and pusher configurations
• Compatible with HOBBYWING IPC (Intelligent Propeller Control) ESC
• Suitable for electric fixed-wing UAVs and VTOL cruise phases

Applications

• Electric fixed-wing UAV cruise propulsion
• VTOL UAV cruise motor
• Electric replacement solution for gasoline engines
